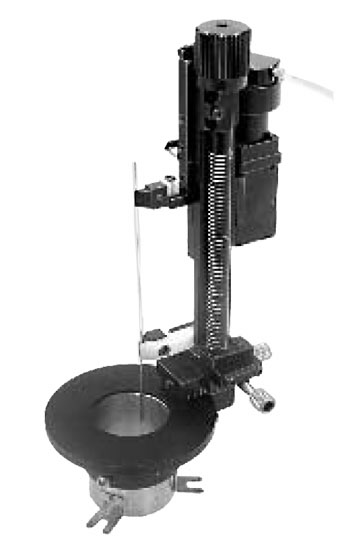

Oil Hydraulic Fine, Mechanical, Micromanipulator w/Stepping Motor , Open Type, w/ XYZ Axis10mm Drive Unit, (Z-Axis) 50mm, (X-Axis) 13mm, (Y-Axis) 18mmThe Open type stage allows many drive units to be mounted, or placement of a grid. Accurate, vibration-free electrode insertion is achieved by remote control, within a 30mm W.D. Guide tube is detachable. Stage and Chamber can be detatched and removed separately.

Oil Hydraulic Micromanipulator (with Stepping Motor)Micromanipulator for Chronic ExperimentsMore precise fine Z-axis motordrive performed by 5 phase stepping motorProduct includes Digital Control System + Motor Module + Drive UnitPosition Memory FunctionRetract&Return FunctionThree drive modes: Free, Set, and Step.Three drive precisions are available: Coarse, Fine, and SuperfineDepth, Vertical, and Horizontal coordinates are al l displayed. A position measurement system saves you the inconvenience of calculating the distance traveled, dur ing and after each exper iment. In addition, values in eachdrive mode can be entered to change the driving volume.One control box can control up to three drive units via an internal card-bus slot systemMinimum Driving Accuracy:Coarse: 0.5µmFine: 0.05micro;mSuperfine: 0.005micro;mUSB Communications Interface

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.

MO-972A

You Might Be Interested In

DT2-CIRC-TK

DigiTherm® CircKinetics™: Ideal Drosophila Activity Monitoring Incubator For Circadian Research!

DT2-MP-47L

DigiTherm® 47-liter Heating/Cooling Incubator

DT2-CO2-38

DigiTherm® CO₂ Heating/Cooling Incubator

Related Products

SR-50

Stereotaxic Workstation

SJ-2

Head Holder for Cats

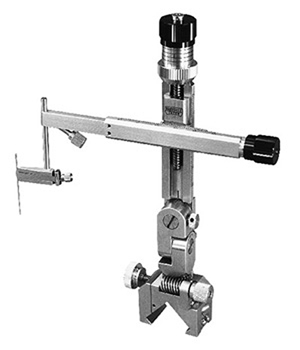

SM-25A
