MMD-4


Three-Axis Coarse/Fine Micromanipulator with Dual Electrode Holder and Rotation Mechanism

MMD-4:  $2,021.62 † - Special Order

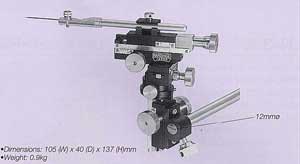

Narishige's MMD-4 is a three-axis coarse/fine micromanipulator with a dual electrode holder that enables the attachment of two microelectrodes, in addition to standard MMN-33 features such as fine manipulation on the X-axis and rotation mechanism. The two microelectrodes are placed side by side so that they approach the specimen simultaneously. Special holders are provided to position the microelectrodes closer together than would be possible using conventional holders.

*Use GJ-8 magnetic stand or equivalent equipment to attach this model.

*Attachment to the side of microscope stage is possible by using P-1B height adjustment plate (sold separately) and a suitable mounting adaptor.

Specification
Accessories Dedicated Electrode Holders, Clamp Rod, Allen Wrench,
Decoration Screw Long/Short, Dedicated Screw
Movement Coarse X40mm, Y20mm, Z35mm
Fine X7mm, Full rotation of knob 250um
Minimum graduation 10um
With rotaion mechanism
Dimensions/Weight W105 x D85 x H175mm, 1kg


*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
