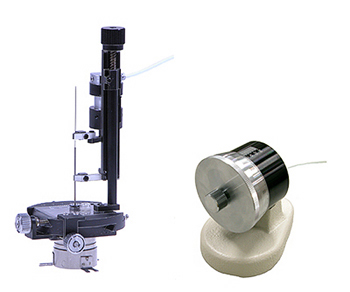

Oil Hydraulic Micromanipulator

(Click to see larger image)

Narishige's MO-96A is an oil hydraulic micromanipulator meant to be mounted on the skull of a medium-sized animal such as monkeys to perform chronic experiments. Its 15mm fine movement range permits deeper brain insertion of a microelectrode. The MO-96A allows a separately available guide tube to be fitted for precise positioning and insertion of a microelectrode into hard tissue or deep brain cells. Despite these added features, the drive unit has reduced its weight to lighten the burden on the animal.

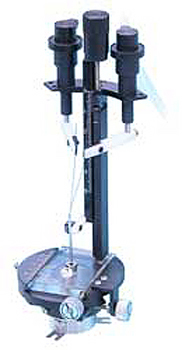

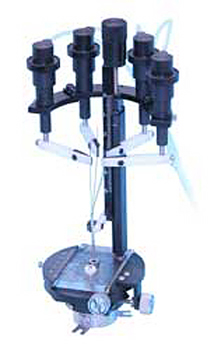

     Its open-type stage permits visual observation of the microelectrode insertion while operating the X- and Y- axis control knobs, and also permits multi-channel operation as well as the use of microelectrodes of various types. The remotely controlled oil hydraulic system permits vibration-free insertion of a microelectrode. With the detachable/attachable drive unit fixed on the skull mount chamber, even if the animal head moves, the microelectrode can be held in position.



*With the drive unit detachable from the chamber, the MO-96A permits the use of chambers

Accessories included		Skull Mount Chamber Unit (equipped with a drive unit connector) : 1 unit Chamber Cap (fitted to Skull Mount Chamber) : 1 piece Fixing Screws : 10 pieces Stainless Steel Tubing (f0.7 x 60mm) : 10 pieces Threaded Round Bar : 1 piece Spacer : 1 piece
Movement Range	Coarse	Z50mm
	Fine	Z15mm, Full Turn of Knob500um, Minimum Graduation2um
Dimensions/Weight	Control Unit	W70 x D115 x H100mm 1.15kg
	Drive Unit	W61 x D46 x H120mm 75g
