Oil Hydraulic Micromanipulator (Closed-Type)

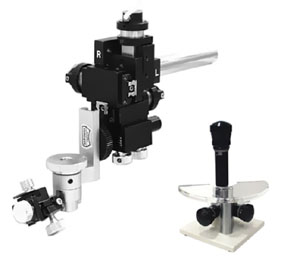

(Click to see larger image)

Narishige's MO-97 is an oil hydraulic micromanipulator meant to be mounted on the skull of a medium-sized animal such as monkeys to perform chronic experiments. Its 30mm fine movement range permits deeper brain insertion of a microelectrode. The MO-97 allows a separately available guide tube to be fitted for precise positioning and insertion of a microelectrode into hard tissue or deep brain cells. Despite these added features, the drive unit has reduced its weight to lighten the burden on the animal.

     Its remotely controlled oil hydraulic system permits vibration-free insertion of a microelectrode. With the detachable/attachable drive unit fixed on the skull mount chamber, even if the animal head moves, the microelectrode can be held in position. A transparent acrylic X-Y stage permits visual observation of the microelectrode insertion. By adjusting the positions of the gasket and the electrode holder, various types of microelectrodes can be used with the MO-97. The skull mount chamber can be filled with Ringer's solution to bring the functioning of the brain to a complete halt, which permits recording for prolonged periods of time.



*Used in combination with a pulse motor microdrive, this system permits even more accurate operation.

Accessories included		Chamber Cap 1 piece Stainless Steel Tubing (f0.7 x 60mm) : 10 pieces Threaded Round Bar : 1 piece Fixing Screws : 10 pieces Spacer : 1 piece
Movement Range	Coarse	Z50mm
	Fine	Z30mm, Full Turn of Knob500um, Minimum Graduation2um
Dimensions/Weight	Control Unit	W70 x D115 x H100mm, 1.15kg
	Drive Unit	W63 x D63 x H121mm, 125g
