MWO-202


DISCONTINUED Please See MMO-202ND

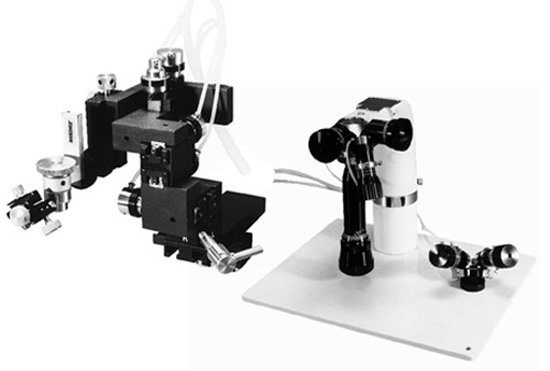

3D Hydraulic Coarse/Fine Micromanipulator

MWO-202:  $8,810.81 - Discontinued


     This is an innovative and versatile coarse and fine movement integrated micromanipulator. Outstanding features include easy-to-use joystick operation, a pipette replacing mechanism, which lets you exchange two pipettes instantly(*1), a rotation mechanism, which makes it easy to change pipettes by rotating the whole body, and a pipette return mechanism, which easily restores the pipette's original position after temporary elevation.

     Incorporation of all these movement capabilities makes it unnecessary to select and combine different models, so that setup is extremely simple. The MWO-202 is both versatile in performance and exceptionally cost efficient.

(*1) HD-21 double pipette holder is required separately.

*For attachment to the microscope, a suitable adaptor is required (sold separately).
*Changing the universal joint that attaches the micromanipulator to HD-21 double pipette holder (sold separately) enables performance of embryo biopsy.
*Changing the universal joint that attaches the micromanipulator to MMO-220 single-axis oil hydraulic micromanipulator enables four-dimensional remote controlled movement.

*For attachment to the microscope, a coarse manipulator and suitable adaptor are required (sold separately).
*Select Type B adaptor for mounting this manipulator in combination with MMN-1 coarse manipulator.
*Changing the universal joint that attaches the micromanipulator to such double pipette holder as HDO-20 (sold separately) enables performance of embryo biopsy.
*Changing the universal joint that attaches the micromanipulator to MMO-220A or MMO-220B single-axis oil hydraulic micromanipulator enables four-dimensional remote controlled movement.

Specification
Accessories included IP Iron Plate, UT-2 Universal Joint,
CF-3 Tube Fixture, Allen Wrench
Movement range Fine X10mm, Y10mm, Z10mm
Full rotation of knob: 250um
Minimum graduation: 2.5um
Joystick (for maximum movement in X-Y plane): 2mm
Dimensions/Weight Control unit W75 x D75 x H115mm, 0.85kg
Drive unit W70 x D50 x H80mm, 0.15kg
