Product Line and Price List |
|
Electric Manipulation Equipment
|
| |

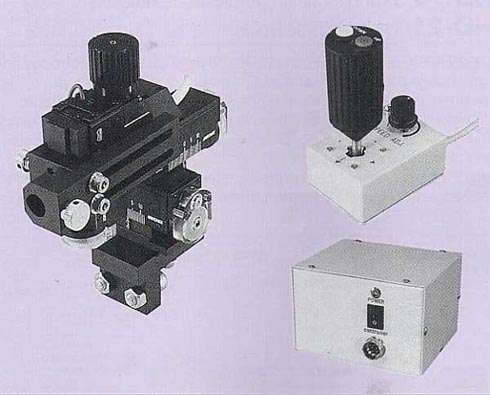

| MM-89 Motor Drive Manipulator |
|
|
The drive unit is compact, light and rigid, allowing
accurate movements in the X-Y plane and giving ample operating space
around the specimen. A new mechanism in the headstage allows pipettes
to be exchanged/repositioned easily. Thanks to the compact, joystick-type
controller, there is sufficient space even when the MM-89 is used
in conjunction with a fine manipulator or injector. The coarse manipulator
is comfortably within reach and to operate.
Price=$4000
|
| Accessories | Allen
wrench, Power supply cable | | Movement
range | Each for X, Y and Z
axes 22mm | | Dimensions | Control
unit W55 x D75 x H120mm
Drive unit W63 x D102 x H104mm
Power supply W125
x D105 x H85mm | | Weight | Control
unit 0.3kg
Drive unit 0.5kg
Power supply 1.5kg | |
| |

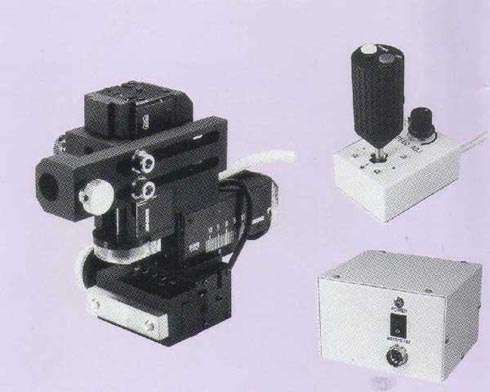

| MM-90 Motor
Drive Manipulator |
|
|
Finding approximate positions is easy with this
high quality motor-driven coarse manipulator. The drive unit is
compact, light and rigid and ensuring ample operating space around
the specimen. The use of a compact, joystick-type controller makes
sure that there's enough space even when a fine manipulator or injector
is used at the same time. The coarse manipulator is comfortably
within reach and easy to operate.
Price=$3800
|
| Accessories | Allen
wrench, Power supply cable | | Movement
range | Each for X, Y and Z
axes 22mm | | Dimensions | Control
unit W55 x D75 x H120mm
Drive unit W63 x D102 x H104mm
Power supply W125
x D105 x H85mm | | Weight | Control
unit 0.3kg
Drive unit 0.5kg
Power supply 1.5kg | |
| |

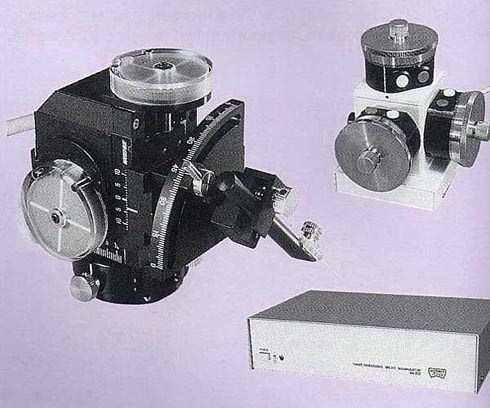

| MM-220 Pulse
Motor Drive Micromanipulator (Special Order) |
|
The compact headstage is kept stable by combining
the wide sliders for all three axis, and employs a vernier type
controller for better operation management than the conventional
key pad system. The drive source is a pulsed motor, for precise
controll, and vibrations are minimized by absorption. A universal
joint provides secure fixing for an amplifier. If required, the
unit can be fixed to the top of an isolation table with the specially
designed GJ-12 magnet stand(optional).
Price=$2250
|
| Accessories | UST-3,
Power supply cable H-12 | | Movement
range | Each for X, Y and Z
axes 24mm | | Dimensions | Control
unit W125 x D125 x H145mm
Drive unit W63 x D102 x H104mm
Power supply
W125 x D105 x H85mm | | Weight | Control
unit 0.3kg
Drive unit 0.5kg
Power supply 1.5kg | |
| |

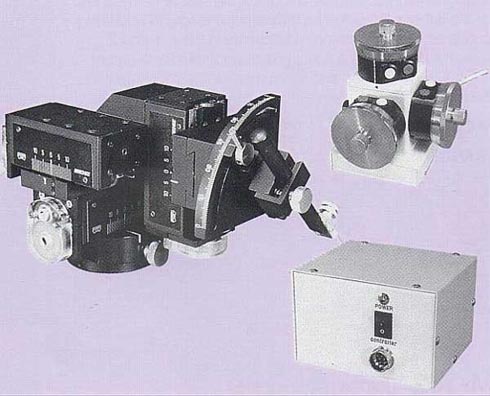

| MM-800 DC
Motor Drive Micromanipulator (Special Order) |
|
| The compact
headstage is kept stable by combining the wide sliders for all three axis, while
a vernier type controller and a universal joint for connecting an amplifier help
to make operation easy. Direct mounting on an isolation table is possible with
the magnet stand GJ-12(Optional).
Price=$4500
|
| Accessories | UST-3,
Power supply cable H-12 | | Movement
range | Each for X, Y and Z
axes 24mm | | Dimensions | Power
supply W125 x D125 x H85mm
Control unit W125 x D125 x H145mm Headstage W70
x D100 x H85 mm | | Weight | Control
unit 1.4kg
Headstage unit 1.0kg
Power supply 1.5kg | |
| |

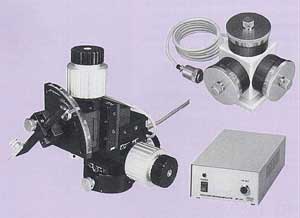

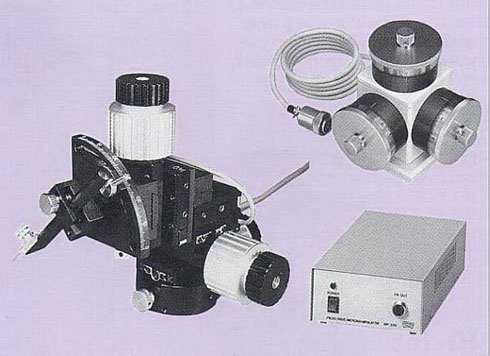

| MPM-300 Piezo/Motor
Drive Micromanipulator (Special Order) |
|
| This is achieved
by using a piezo element, which is combined with the manual drive to help keep
the headstage compact as well as stable. An amplifier can be connected via the
universal joint (supplied), and the unit can be mounted on an isolation table
with the magnet stand a GJ-12 (optional)
Price=$4500
|
| Accessories | UST-3,
Power supply cable H-12 | | Movement
range | Each for X, Y and Z
axes 5mm, 20mm, 100um | | Dimensions | Power
supply W125 x D125 x H85mm
Control unit W125 x D125 x H145mm Headstage W70
x D100 x H85 mm | | Weight | Control
unit 1.5kg
Headstage unit 1.5kg
Power supply 2.3kg | |
| |

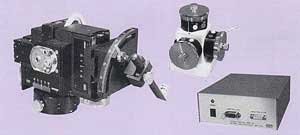

| MP-330 Piezo/Motor
Drive Micromanipulator (Special order) |
|
|
Incorporation of a piezo element enables in the
DC motor drive helps to keep the headstage compact as well as stable,
while all operating functions are easily performed via the vernier
type controller at the operator's side. A universal joint is supplied
for connecting an amplifier, and the magnet stand GJ-12(optional
allows direct mounting on an isolation table.
Price=$7300
|
|
| |

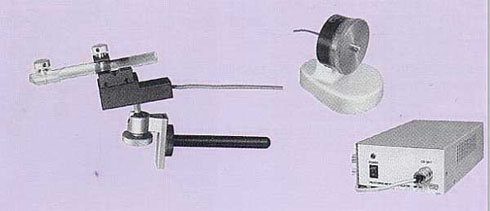

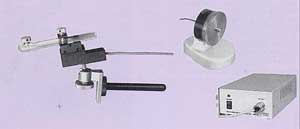

| MP-30 Piezoelectric
Micromanipulator (Special order) |
|
|
One dimensional piezoelectric micromanipulator
Price=$2850
|
| Movement range | Single
axis 50um | | Accessory | H-11 |
|
| |
