Mechanical Manipulators

MN-151 JOYSTICK TYPE MICROMANIPULATOR (Most Popular)

This lightweight joystick manipulator can easily be mounted on the left or right side of a microscope stage. In addition to coarse rack and pinion movements in the X, Y, and Z axis, it incorporates a fine joystick controlled movement in the X and Y planes and a fine mechanical movement in the Z axis.

Price=$1351

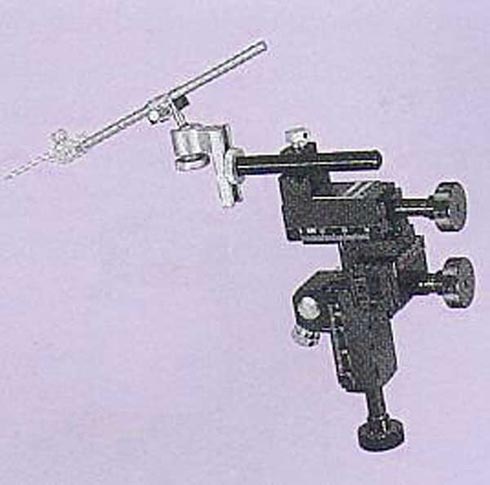

M-152

The extensive use of light alloys in the construction of this manipulator keeps its weight down to an absolute minimum. The unit can be used as a three-axis manipulator or as a rapid coarse positioner when used in conjunction with a fine micromanipulator, such as the single axis MMW-220 hydraulic micromanipulator.

Price=$745

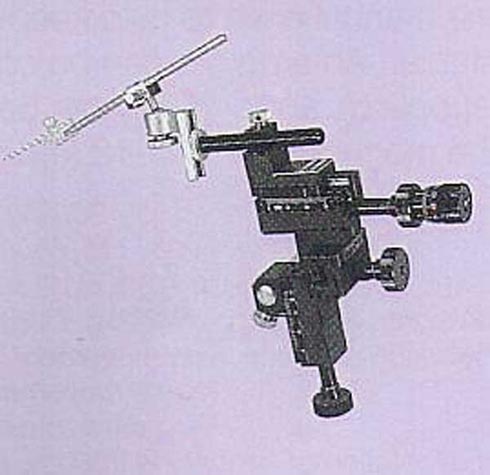

MN-153

Direct-drive type
This three-axis coarse manipulator provides extra fine control on the X axis. Narrow in design, and constructed largely from lightweight alloy, it can readily be fitted to a microscope stage for using the appropriate mounting adaptor stable manipulation with minimal vibration.

It is necessary to use the appropriate mounting adaptor to interface the MN-153 with the microscope.

Price=$1000

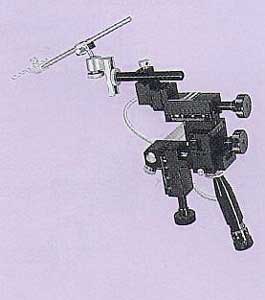

MO-155 Direct-drive type with additional fine hydraulic z-axis movement

This manipulator incorporates a joystick control that provides fine movements in the x, y and z axis. The z axis movement is hydraulically driven to ensure minimum vibration of the needle tip. in addition the manipulator has coarse rack and pinion movements in the x, y and z axis. It can be used in conjunction with a microscope, in a wide variety of experiments.

Accessories: P-1 , H-7 , B-8B

Price=$745

Achieving vibration-free operation

The slider, which is one of the main mechanisms of a micromanipulator, actually consists of two independent sliders --- one used inside, the other outside. When the operator touches the control knob, which is connected to one slider, vibrations are caused. To overcome this problem, the control knob is fixed independently, separate from the slider.

Price=$3100

*This instrument can be mounted onto the stageside.

Price=$1140

This joystick type micromanipulator uses large size ball joint for enhanced stability. A single joystick allows easy movement in two planes (with three-dimensional coarse movement.

Price=$1900

Equipped with a magnet, this micromanipulator can be fixed to a steel plate attached to a microscope. A built in rotating mechanism makes microelectrode replacement extra easy and quick.

Price=$625

Developed through Narishige's leading edge technology, this basic, compact micromanipulator incorporates brass knobs on both sides so that a single unit can accommodate both right hand and left hand use. A tension adjustment knob for drop prevention is also provided. Use the GJ-8, etc. for mounting.

Price=$1050

Designed like the MM-3 with fine X movement eliminated, this manipulator is designed for coarse positioning in the X, Y, and Z axes. Ideal as a coarse positioner for hydraulic micromanipulators. Use the GJ-8, etc. for mounting.

Price=$885

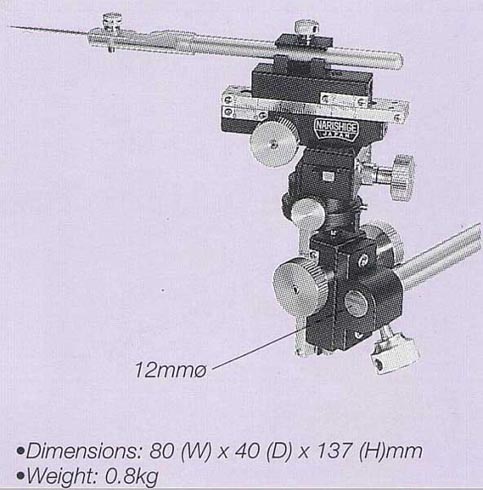

This manipulator has all the three dimensional movements of the MMN-3, plus rotation to facilitate easy mounting on a microscope and microelectrode exchange. Use the GJ-8, etc. for mounting.

Price=$1050

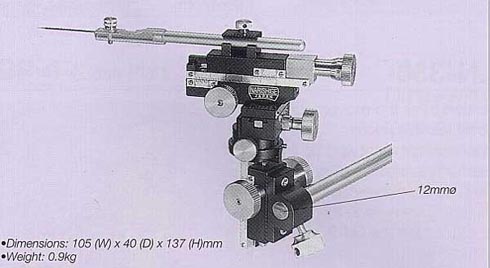

Pivot and tilt mechanisms for fine movement, in addition to all the three dimensional movements of the MM-3, enable both coarse positioning and fine movement in the X,Y, and Z axes. Use the GJ-8, etc. for mounting.

Price=$1350

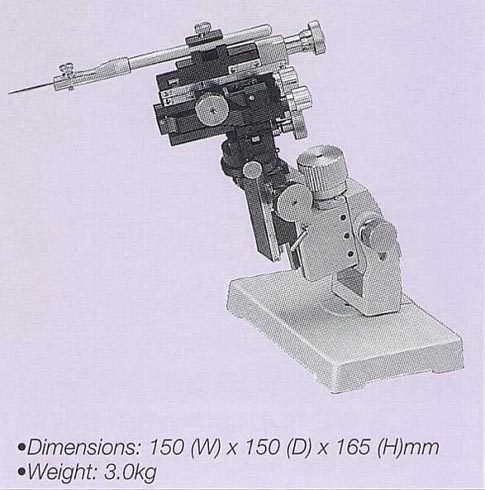

This unit incorporates an MMN-330 micromanipulator with an added fine movement in the Z axis, as well as a tilt mechanism mounted on a stable steel stand. It also comes equiped with a height adjuster unit.

Price=$1850

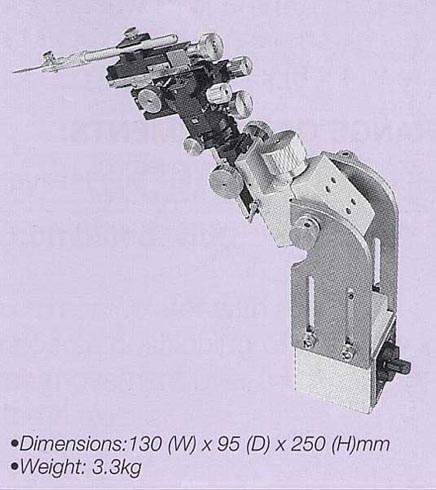

This micromanipulator has all the features of the MMN-8, except the steel stand. Besides fine movements in the Z axis and a tilting mechanism, it also comes equipped with a height adjuster unit mounted on a magnetic base.

Price=$2000

This micromanipulator incorporates all the features of the MMN-33, with a houlder attached on top for simultaneously inserting two electrodes at adjacent sites. Use the GJ-8, etc. for mounting.

Price=$1450

Incorporating all the features of the MMN-33, this micromanipulator also includes a holder attached on top for simultaneously inserting three electrodes at adjacent sites. Use the GJ-8, etc. for mounting.

Price=$1650

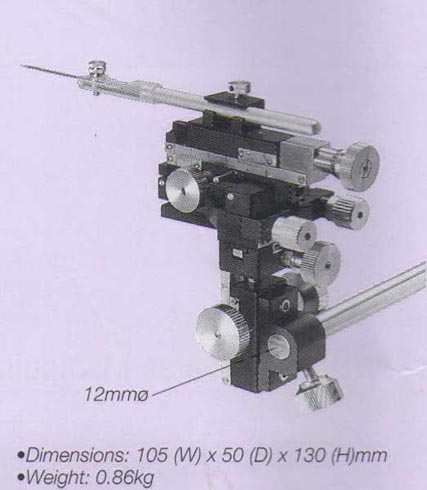

A three dimensional mechanical micromanipulator (MM-3) with an additional 90° rotation about the X axis, this unit is convenient for mounting on a microscope. Rapid changing of microelectrodes is also made easy. Use the GJ-8, etc. for mounting.

Price=$1250

With all the features of the MMN-333, this micromanipulator also has an extra rotation. This results in easy and quick coarse and fine adjustments in all three axes and rapid electrode attachment and detachment. Use the GJ-8, etc. for mounting.

Price=$1500

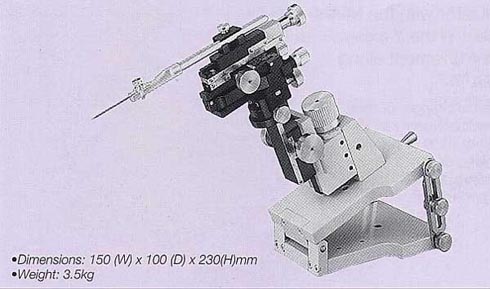

This unit consists of an MMN-330 micromanipulator with an added fine movement in the Z axis and a new tilting stand with two side poles folded down. A height adjuster unit is also included.

Price=$2100

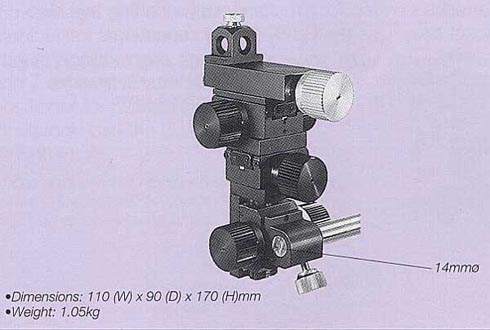

The ML-3 has the same basic configuration as the MM-3, but has been made larger to increase stability and rigidity. Use the GJ-2, etc. for mounting.

Price=$1500

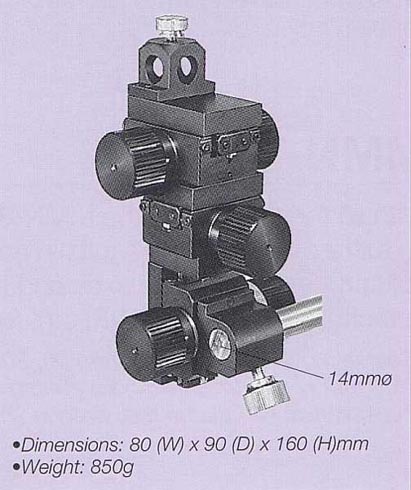

The MLN-3 is a three-dimensional coarse manipulator designed like the ML-3 with fine movement eliminated. Ideal as a coarse positioner for hydraulic micromanipulators. Use the GJ-2, etc. for mounting.

Price=$1300

With all the three-dimensional movements of the MLN-3 plus rotation, this unit enables smoother mounting on a micro-scope and easier changing of microelectrode.

Price=$1450

Rotation has been added to the basic design of the ML-3, facilitation rapid microelectrode attachment and detachment as well as convenient mounting on a microscope. Use the GJ-2, etc. for mounting.

Price=$1650

In addition to all the movements of the ML-3, this micromanipulator has pivot and tilt control for fine movements, enabling both coarse positioning and fine adjustments in the X, Y and Z axes. Use the GJ-2, etc. for mounting.

Price=$2100

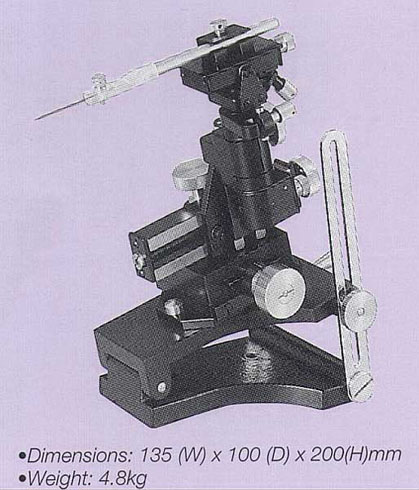

This universal micromanipulator is a result of Narishige's skilled craftsmanship and long years of expertise in developing micromanipulators. A wide range of adjustments are incorporated including coarse movement in the Z axis, fine movement in the X and Z axes as well as tilt and pivot.

Price=$2600

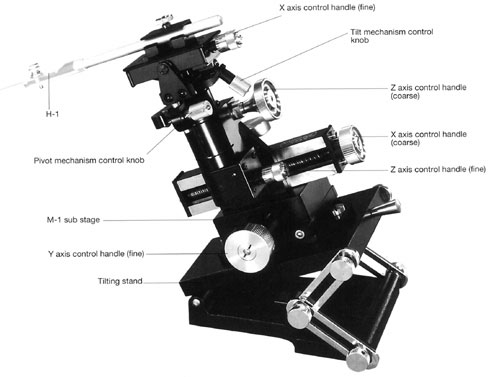

This micromanipulator combines the features of the MP-1 micromanipulator with the M-1's fine movement in the Y axis, allowing fine movement along all three axes.

Price=$3000

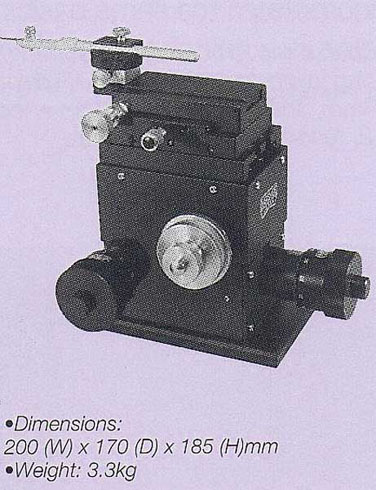

Originally developed for use in patch clap work, this micromanipulator features drift-free stability to keep patch probes fixed in the same position over an extended period. A built-in rotating mechanism allows quick and simple replacement of microelectrodes.

Price=$3100

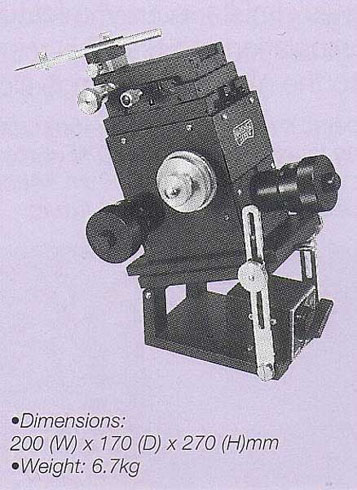

Featuring the same basic design as the MX-1, the MX-2 is mounted on a convenient tilting stand (TM-1) with magnetic base.

Price=$3450

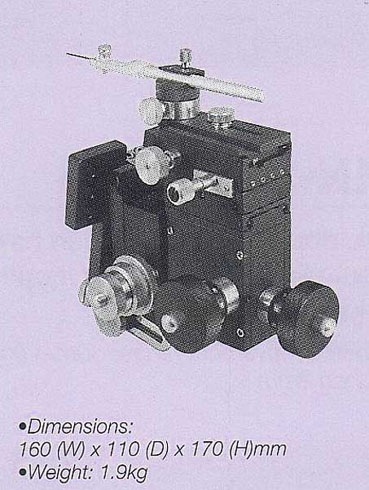

This compact micromanipulator with a manual drive mechanism provides drift free performance, making it ideal for long term patch recording. A built in rotation machanism permits easy and swift microelectrode replacement. This unit easily attaches to a wide variety microscopes and can be positioned at any desired angle as well.

Price=$2600

This micromanipulator has all the features of the MX-3, plus a tilting magnetic stand.

Price=$2800

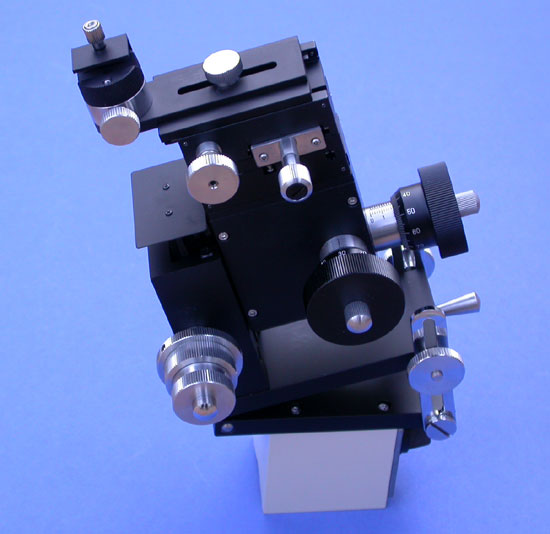

This unit consists of an additional fine control in the Z axis and a new tilting stand with two side poles folded down. A height adjuster unit is included as well.

Price=$2600

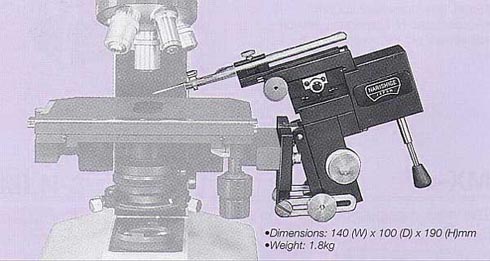

A joystick has been incorporated to allow easy fine movement in two planes simultaneously, a feature especially convenient for the micro-manipulation of cells. This micromanipulator can be securely fixed onto the microscope stage side.

Price=$3450

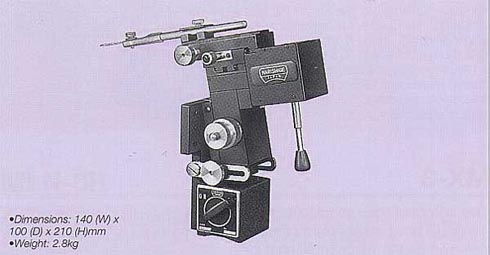

Designed for mounting onto a magnetic base, this micromanipulator incorporates the same basic mechanism as the MJ-1.

Price=$3650

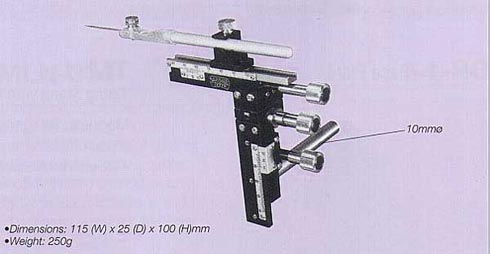

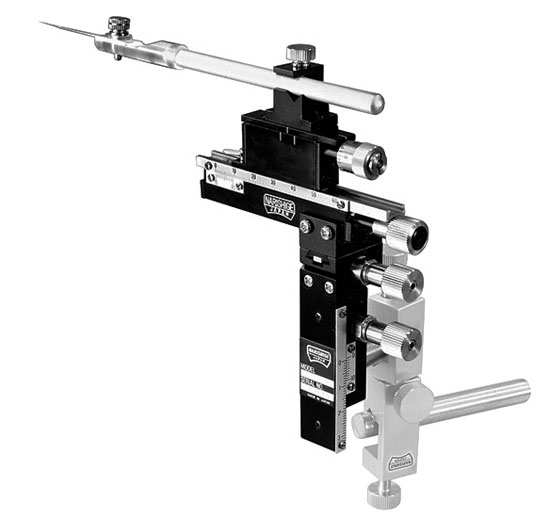

This extremely thin micromanipulator has all the knobs protruding in a single direction, so that it takes up less space. This also allows a number of microelectrodes to be inserted simultaneously at closely adjacent sites.

Price=$785

This apparatus is designed based on the M-3333 with fine X movement eliminated, making it optimal for use in positioning electrode holders.

Price=$625

This three dimensional manipulator is extremely compact, yet extra rigidly constructed.

Price=$815

Compact and lightweight three-dimensional manipulator.

Price=$870

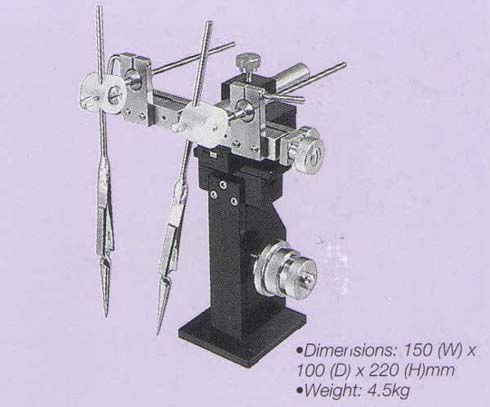

This apparatus is used to grip both ends of a nerve fiber or muscle, and stretch and hold it under tension to facilitate insertion of a microelectrode.

Price=$1900

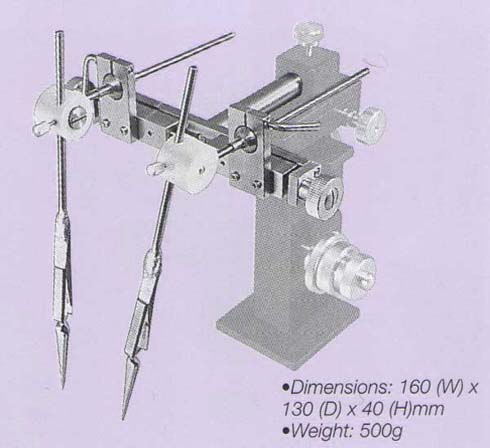

This simplified unit is designed just for gripping nerve fiber or muscle.

Price=$940

Equipped with an A-2 muscle fixing apparatus, this micromanipulator provides coarse movement in all three axes plus fine control in the Z axis.

Price=$2300

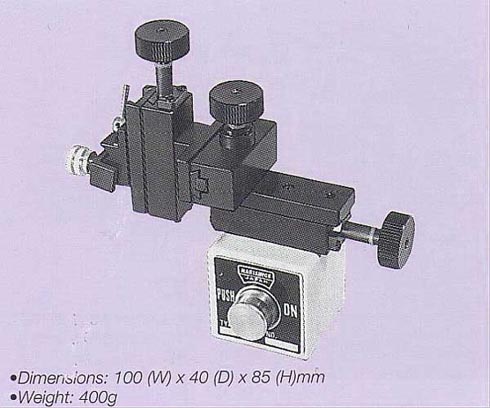

Ultracompact and rigid three-dimensional manipulator with an easily detachable magnet.

Price=$675

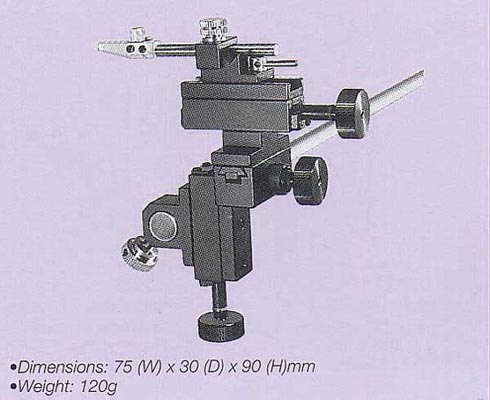

A bar mounting version of the M-40 manipulator.

Price=$645

This manipulator is specially configured to realize three-dimensional movement in a more compact design. It provides linear movement for the X axis, pivot movement for the Y axis and tilt movement for the Z axis adjustment.

Price=$470

Compact, one dimensional manipulator.

Price=$260

Compact, one dimensional fine micromanipulator.

Price=$290
