Product Line and Price List |
|
Oil Hydraulic Manipulation
Equipment |
|
|

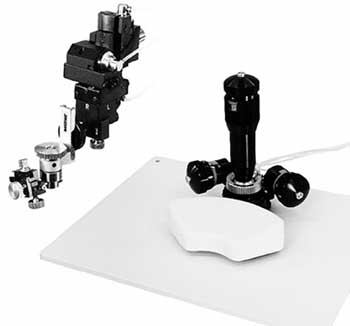

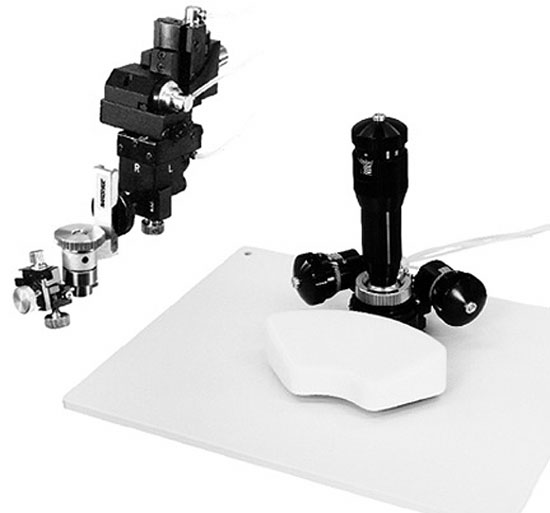

| MMO-202N
Three-axis Joystick Oil Hydraulic Micromanipulator |
 |
|
With
its palm-sized joystick and reduced height, this compact control unit is convenient
and comfortable to operate without fatigue. The X and Y axis control knobs are
sited where the operator can reach them easily, and there's a cover for the Z
axis knob to prevent accidental movement. The hand-rest is independent and inclined
, allowing it to be set exactly as required. The control knob operating pressure
is constant, for steadier movement, thanks to improved springs in the drive mechanism.
The MMO-202N is designed for left- or right-hand use, with the specimen placed
on which ever side is preferred.
Price=$6000
|
| Accessories | UT-2,
Tubeconnector x 2,
Allen wrench. | | Movement
range | Each for
X, Y and Z axes 10mm | | Full
rotation of knob | 250um |
| Minimum graduation | 2.5um |
| Joystick | 2mm
(for movement in X-Y plane) | | Dimensions | Control
unit W75 x D75 x H115mm
Drive unit W70 x D50 x H80mm |
| Weight | Control
unit 0.85kg
Drive unit 1.8kg | |
|
|
| MMO-202ND
Three-axis Hanging Joystick Oil Hydraulic Micromanipulator |
 |
|
The rounded
hanging joystick configuration is preferred by many operators for
its exceptional ease of operation. Ratio adjustment is easier too,
since it's performed from the upper surface of the control unit,
and there's cover for the Z axis control knob to prevent accidental
movement. The control knob operating pressure is constant, thanks
to improved springs in the drive unit, and changing over from left-
to right-hand usage is a simple matter of just loosening the two
setting screws.
Price=$6000
|
| Accessories | UT-2,
Tubeconnector x 2,
Allen wrench. | | Movement
range | Each for
X, Y and Z axes 10mm | | Full
rotation of knob | 250um |
| Minimum graduation | 2.5um |
| Joystick | 2mm
(for movement in X-Y plane) | | Dimensions | Control
unit W75 x D75 x H115mm
Drive unit W70 x D50 x H80mm |
| Weight | Control
unit 0.85kg
Drive unit 1.8kg | |
|
|
| MMO-203
Three-axis Oil Hydraulic Micromanipulator |
 |
|
This remote-controlled,
hydraulic micromanipulator assures smooth, vibration-free operation
in three axis. With these models, a remote-controlled pipette can
hold cells or be inserted into them, and individual cells can be
sectioned or held. The large control knob makes it much easier to
reproduce a known series of movements along an axis. The MMO-203
is for left- or right-hand use, so it can be set on either side
of the specimen.
Price=$4900
|
| Accessories | B-8C,
H-7, Tubeconnector x 2,
O.D.10 stainless steel bar,Allen wrench. |
| Movement range | Each
for X, Y and Z axes 10mm | | Full
rotation of knob | 250um |
| Minimum graduation | 1um |
| Dimensions | Control
unit W115 x D115 x H132mm
Drive unit W39 x D51 x H90mm |
| Weight | Control
unit 1.6kg
Drive unit 0.2kg | |
|
|
MMO-220A/B
Single-axis Oil Hydraulic Micromanipulator
|
 |
| Used
with a joystick-type micromanipulator, the compact, high-precision
MMO-220B incorporates a hydraulic mechanism on a ball joint. The hydraulic
drive system ensures smooth, vibration-free movement along the axis
of the micropipette.
MMO-220A, provided
drum type control unit, is also available.
Price=$2250
|
| | MMO-220B | MMO-220A |
| Accessories | CF-3
Tube fixture x 2,
Wrench x 1 | CF-3
Tube fixture x 2 | | Movement
range | 10mm | 10mm |
| Full rotation of knob | 250um | 250um |
| Minimum graduation | 2.5um | 1um |
| Dimensions | Control
unit W64 x D30 x H63mm
Drive unit W65 x D20 x H75mm | Control
unit W70 x D115 x H100mm
Drive unit W65 x D20 x H75mm |
| Weight | Control
unit 65g
Drive unit 85g | Control
unit 1.15kg
Drive unit 85g | |
|
|
| MO-95
Chronic Micromanipulators Skull-Mounting Hydraulic Microdrive |
 |
|
This
micromanipulator is attached to a skull chamber, which affixes to the skull of
a monkey or animal of similar size . All adjustments are made through a remote-controlled
hydraulic drive. Standard teflon tube is O.D. 1mm.
Price=$4000
|
| Accessories |
Chamber
x5, cap x1, set screw x10, stainless pipe (O.D. 0.7mm x 60mm)
x10, bar with screw x1. |
| Movement
range |
50mm(coarse),
10mm(fine) |
| Full
rotation of knob |
|
| Minimum
graduation |
|
| Joystick |
|
| Dimensions |
|
| Weight |
|
|
|
|
| MO-99
Chronic Micromanipulator |
 |
|
This
remote-controlled hydraulic micromanipulator attaches to the skulls of rats or
other animals of similarly small size.
Price=$3350
|
| Accessories |
Chamber
x5, cap x1, set screw x10, stainless pipe (O.D. 0.7mm x 40mm)
x10 |
| Movement
range |
5mm |
| Full
rotation of knob |
|
| Minimum
graduation |
|
| Joystick |
|
| Dimensions |
|
| Weight |
|
|
|
|

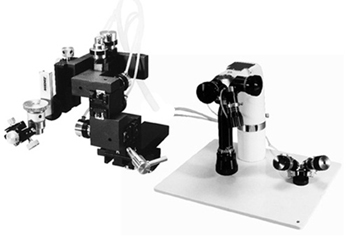

| MWO-202
Three-axis Hydraulic Coarse/Fine Micromanipulator |
 |
|
Built-in Pipette
Return Mechanism.
Built-in Pipette Replacing Mechanism.
Built-in Rotation Mechanism.
Coarse/Fine Integrated Oil Hydraulic Mechanism enables Smooth, Vibration-Free
Operation controlled by a joystick Maneuver.
Simple and Easy Reconfiguration between Right-Hand and Left-Hand
Operations.
A variety of Adjustment Functions provided.
Coarse Control Knobs (X/Y axes) can be installed at a preferred
position.
Price=$8150
|
| Working
Distance Fine |
X/Y/Z axis 11mm each
One Rotation of the Control Knob 500um
|
| Course |
X/Y/Z axis 14mm each
One Rotation of the Control Knob 1.25mm |
| Total XYZ |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
| MO-951
Chronic Micromanipulator Pulse Motor Microdrive |
 |
|
This Micromanipulator has all the features of the
MO-95 plus a built in pulse motor.
Price=$8700
|
| Working
Distance Fine |
X/Y/Z axis 11mm each
One Rotation of the Control Knob 500um
|
| Course |
X/Y/Z axis 14mm each
One Rotation of the Control Knob 1.25mm |
| Total XYZ |
|
| Accessories |
Chamber
x5, cap x1, set screw x10, stainless pipe (O.D. 0.7mm x 60mm)
x1 |
|
| |
| MO-202U
Micromanipulator |
 |
|
Price=$6000
|
Working
Distance : 10mm
One Rotation of the Control Knob : 500um
Operating area
of joystick : 2mm-diameter circle on the X-Y plane at the maximum. |
| |

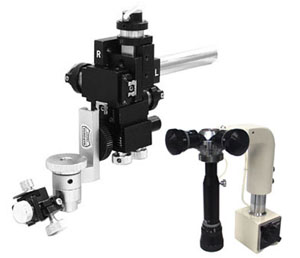

| MO-202D
Micromanipulator |
 |
|
Price=$6000
|
Working
Distance : 10mm
One Rotation of the Control Knob : 500um
Operating area
of joystick : 2mm-diameter circle on the X-Y plane at the maximum. |
