MO-95 Skull-Mounting Hydraulic Microdrive

This micromanipulator is attached to a skull chamber, which affixes to the skull of a monkey or animal of similar size . All adjustments are made through a remote-controlled hydraulic drive. Standard teflon tube is O.D. 1mm.

Movement range : 50mm(coarse), 10mm(fine)
Accessories : Chamber x5, cap x1, set screw x10, stainless pipe (O.D. 0.7mm x 60mm) x10, bar with screw x1.

Price= $4,000

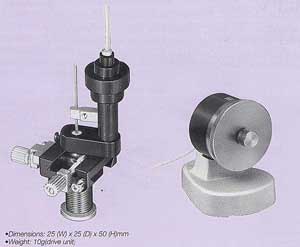

MO-99 Chronic Micromanipulator

This remote-controlled hydraulic micromanipulator attaches to the skulls of rats or other animals of similarly small size.

Fine movement range : 5mm
Accessories : Chamber x5, cap x1, set screw x10, stainless pipe(O.D. 0.7mm x 60mm) x10, bar with screw x1.

Price= $3,350

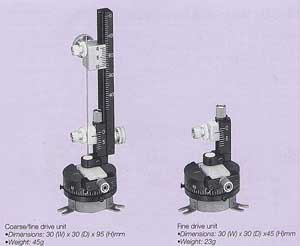

MO-900 Chronic Manipulator

Frequently used in psychological experiments, manipulator is affixed to the skulls of experimental animals and makes only coarse movements on X, Y, and Z axes. This compact unit has a built-in X-Y stage which can be moved along a single axis or rotated. Various size of skull-mounting chambers are available: standard, for cats; half-size, for rabbits; and quarter-size, for rats.

Coarse movement range : 40mm
Fine movement range : 7mm
Accessories : Chamber x2, cap x1, set screw x10, stainless pipe(O.D. 0.7mm x 60mm) x10
MO-900 1/2
Coarse movement range : 40mm
Fine movement range : 7mm
Accessories : Chamber x2, cap x1, set screw x10, stainless pipe(O.D. 0.7mm x 60mm) x10
MO-900 1/4
Coarse movement range : 40mm
Fine movement range : 7mm
Accessories : Chamber x2, cap x1, set screw x10, stainless pipe(O.D. 0.7mm x 60mm) x10

Price= $2,100

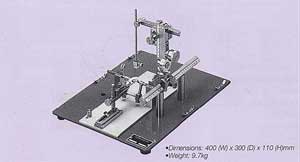

SR-5N Stereotaxic Instrument (with single AP frame bar)

This compact and stable stereotaxic instruments has been developed for work with small animals, especially rats. An auxiliary ear bar is incorporated for secure fixation of rat ears.

Accessories : SM-15 electrode support,auxiliary ear bar

Price= $4,050

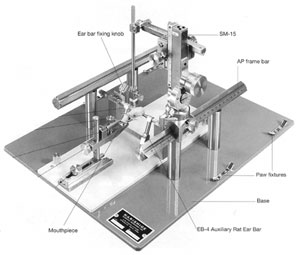

SR-6N Stereotaxic Instrument (with two AP frame bars)

Incorporating two electrode carrier/manipulator mounting bars (AP frame bars),
this instrument is designed similarly to the SR-5N.

Accessories : SM-15 electrode support,auxiliary ear bar

Price= $4,650

SM-15 Universal Electrode Carrier

The compact and sturdy unit is the most popular electrode carrier for use with stereotaxic instruments. Its outstanding feature is the Z direction fine adjustment knob which is located on the bottom section to ensure that no vibrations, caused when manipulating the knob, will be transferred to the needle tip.

Coarse movement range : 60mm(X),50mm(Z)
Fine movement range in Z: 8mm
Full rotation of knob : 500um
Accessories : wrench 2mm,2.5mm,3mm (1 each)

Price= $2,000

SM-15M Substage for SM-15

When combined with the SM-15, this one-dimensional manipulator allows fine adjustment along the Y axis.

Fine movement range : 20mm
Full rotation of knob : 500um
Accessory : Wrench 3mm

Price= $2,000

SM-11 Universal Electrode Carrier

This is a compact yet versatile electrode carrier providing many degrees of adjustment when attached to a stereotaxic instrument.

Coarse movement range : 30mm(X,Y),50mm(Z)
Fine movement range in Z: 30mm
Full rotation of knob : 500um
Accessories : Special screwdriver,wrench 3mm,2mm(1 each),holders set screw(1 pair)

Price= $3,850

SM-12 Universal Electrode Carrier

This simple electrode carrier can be mounted to a stereotaxic instrument using various mounting methods.

Coarse movement range in Z : 70mm
Accessories :wrench 3mm,2mm(1 each),screw (M2 x 6) x2

Price= $1,100

EB-3 A or B Mice Ear Bar for SR Series

Price= $185

EB-4/EB-5

Auxiliary Rat Ear Bar

Price= $220

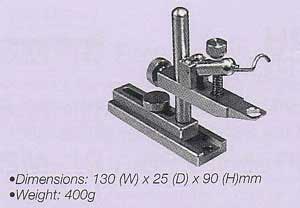

MA-6 Adaptor for Stereotaxic Instruments

Used to hold the mouse head onto the SR series stereotaxic instruments.

Accessory : Auxiliary ear bar

Price= $730

MA-1 Electrode Position Calibrator

The gauge mark of this instrument coincides with the gauge mark(0 point) of the stereotaxic instrument, enabling accurate attachment of the electrode carrier to the AP frame bar. This instrument also reads the X, Y, and Z axis coordinates of the electrode carrier and converts them to the scale of the stereotaxic instrument.

Price= $850

MA-2 Electrode Carrier Stand

This stand accommodates electrode carriers for stereotaxic instruments.
