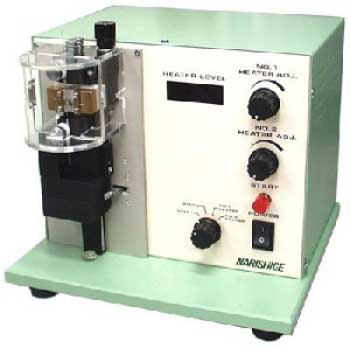

PP-830 Glass Microelectrode Puller

Designed to make microelectrodes for use in patch clamp work, the PP-830 is equipped with a range of advanced features to enhance quality and accuracy. One is the built in power source, which is specially stabilised to avoid voltage fluctuations and maintain consistant control of calorific value. Another is ultra-precise tuning of the heater settings; dual adjustment knobs permit 10 step graduation, and there's a digital display for easy monitoring and maintaining of selected settings. An acrylic hood is provided to cover the heaterand exclude drafts.

Price=$2,200

PC-10 Needle Puller

Designed to produce pipette tips of less than 0.1um with a single pull, and tips from a few um to tens of um in the double pull mode. The starting buttons of the single and double pull modes require one press. Heater voltage values are digitally displayed, assuring excellent reproductivity, and residual heat is used for steady reproduction of the pipette. Two kinds of weight (light and heavy, s for each) are provided to enable adjustment of the pulling force.

Price=$2,850

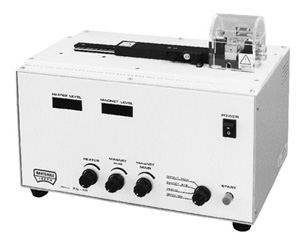

PN-30 Puller

This puller produces parallel pipettes with tips of less than 1 micron. Accurate electric platinum heater adjustment is complemented by precise control of the force and timing of both magnetic pulls. This ensures a constant, high quality reproduction of micropipettes. Settings for the heater and both magnets are easily performed by reading the levels shown of the digital display and adjusting the dial accordingly..

Price= $3,550

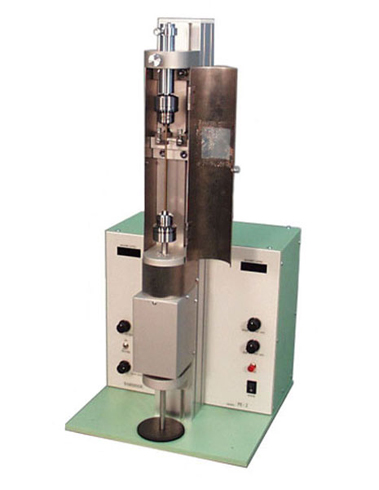

PE-21 Glass Microelectrode Puller

PE-21 is designed to produce microelectrodes required for measuring the electric potential of cells in the biological experiments. It is a fully automatic, vertical type instrument suitable for pulling thick glass tubes(2mmÅ`4mm) and ideal for producing long and comparatively solid electrodes required for deep penetration. PE-21 is also capable of producing multibarrel electrodes.

Specifications:

Dimensions: 300(W) x 300(D) x 610(H) mm

Weight: Approx. 27kg

Power source

AC100 (+/- 5%)

AC120 (+/- 5%)

AC220 (+/- 5%)

AC240 (+/- 5%)

Power consumption: Approx. 500W Max.

Heater current: Approx. 17A

Heater voltage: Approx. 6V

Slider moving distance: Approx. 55mm

Used for 4mm glass capillary and multibarreled electrode

Price= $5,000

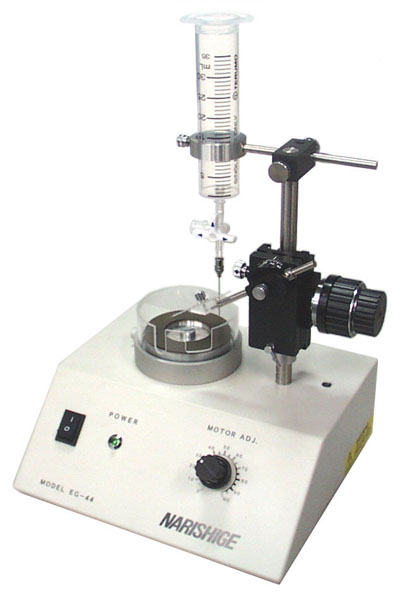

EG-44

EG-44 is best suited for grinding and beveling the tip of a micropipette.
Features of EG-44 include stable up-and-down movements of the micropipette by operating the coarse and fine coaxial manipulator and stable motor speed from low rpm to high rpm through the adoption of a special motor. In addition, plane wobbling and vibration are reduced to a minimum to ensure precision work.

Specifications
Dimensions : 185(W) x 165(D) x 310(H) mm
Weight : About 2.4 kg
Power supply voltage
AC100, AC120, AC220, AC240 (+/- 5%)
Power consumption
About 10W at the maximum
Motor speed : 50
Working distance of the slider : 47mm
Usable glass capillaries :O.D.1mm Å` O.D.1.5mm
Equipped with a water dripping unit.
Compliant with CE Marking

Price= $2,080

EG-400 Microelectrode Grinder

Monitoring progress via the built-in 30X microscope, the EG-400 operator can easily achieve accurate grinding of microelectrodes/micropipettes with tips as small as 1-30um. With the microelectrode holder set to a selected angle, grinding is performed at various angles by manipulating the vertical coarse and fine coaxial knobs. the EG-400's special motor allows variable rotation speeds, minimizes vibration and keeps the whetstone rotating smoothly in the horizontal plane. Power supply stability is further refined, and the unit conforms to European industry standards.

Price= $4,900

MF-830 Microforge (for patch clamp)

A fine finish for microelectrode tips in patch clamp is assured with advanced fire-polishing technology, which eliminates imperfections on the tip surface that could damage delicate membranes. The MF-830 has heater and lamp adjusting dials on the front, and independent manipulators for positioning the heater and microelectrodes. The heater manipulator allows fine vertical adjustments, making it possible to achieve a closer, more precise approach to the electrode. The unit features a 500x high magnification lens.

Price=4900

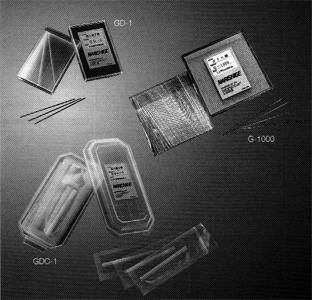

G-100 Thin glass tubings
This capillary tybing is made of thinner glass, increasing the inner diameterwhile keeping the outer diameter unchanged.

G-1 Capillary Tubing
This product is a general glass capillary tubing.

GD-1 Capillary Tubing
Generally known as double tubing, the GD-1 contains an internal glass fiber (approx. 100 microns)

Glass Capillaries

Glass rod

Heaters

Can't afford to purchase your own needle puller?

Buy pre-pulled needles from us at a great price! Call for more information.
