MHW-3


Three-Axis Water Hydraulic Fine Micromanipulator

MHW-3:  $7,945.95 † - Ships in 1-5 days

Image for Three-Axis Water Hydraulic Fine Micromanipulator coming soon!
(Click to see larger image)
Quantity:

Tell a friend
Contact Us



Narishige's MHW-3 is a water hydraulic micromanipulator specially designed for patch clamping. Its water hydraulic system has a lower coefficient of expansion than an oil hydraulic system, and allows precise movement. A 1:5 cartridge is incorporated to minimize drifting. The large, rigid driving unit enables fine movements and coarse manipulations and a sturdy ball joint is also used. Installation is made more rigid by securing attachments to the bar. The drum type control unit has a large handle for precise operation and high linear repeatability. Overall, design considerations are focused on precision movement and stability over long periods of time. This model set the standards for subsequent models of micromanipulators for patch clamping.

*For attachment to the microscope, a suitable adaptor is required (sold separately).
*The micromanipulator can be mounted directly on the isolation table.
*This model can be firmly fixed to any part of the isolation table with GJ-12 thin-type magnetic stand (sold separately).
*AP-12A/AP-12L/AP-12N/AP-13-2 patch clamp headstage holders can be attached on the B-9 ball joint, incorporated in the manipulator .
*Combining the ball joint that attaches the micromanipulator with MHW-4 single-axis water hydraulic micromanipulator enables four-dimensional remote controlled movement.

Specification
Accessories included B-9 Ball Joint, H-11 Electrode Holder,
CF-3 Tube Fixture, Allen Wrench
Movement range Coarse X30mm, Y30mm, Z30mm
Full rotation of knob: approx. 4mm
Fine X2mm, Y2mm, Z2mm
Full rotation of knob: 50um
Minimum graduation: 0.2um
Dimensions/Weight Control unit W115 x D115 x H132mm, 1.6kg
Drive unit W155 x D155 x H100mm, 900g



† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.


You Might Be Interested In

MINJ-D

microINJECTOR™ All-Digital Multi-pressure System


MINJ-1

microINJECTOR™ System


IM-300

Pneumatic Microinjector (Programmable)


Related Products

MHW-103

Three-Axis Water Hydraulic Fine Micromanipulator (1:1 System)

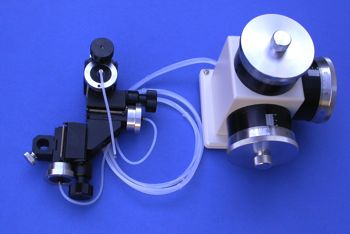

WR-6
