Narishige's MM-80 is a three-axis coarse/fine motorized micromanipulator specifically developed for patch clamp recording. This motor-driven micromanipulator is designed to provide as fine movement as possible at a competitive price, devoid of bells and whistles, with its controller employing simple-design push button switches.

Specification

Movement range	Coarse	20mm
	Fine	30mm
Fine Drive Screw Pitch	0.25mm
Coarse Drive Screw Pitch	Approx. 4.1mm
Fine Control System	Push-button switches
Power source	AC100V(+-5%), AC120V(+-5%), AC220V(+-5%), AC240V(+-5%) / 50-60Hz
Dimensions/Weight	Power supply	W125 x D105 x H85mm Approx. 1.5kg
	Control unit	W100 x D75 x H50mm Approx. 0.25kg
	Drive unit	W145 x D140 x H135mmApprox. 1.1kg
*Non-CE Marked

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.

MM-80

Three-Axis Coarse / Fine Motorized Micromanipulator

You Might Be Interested In

EG-400

Micropipette Grinder

MF-900

Microforge

MINJ-1000

microINJECTOR™ System Complete w/ Inverted Microscope, manipulator

Related Products

MM-800

Three-Axis Coarse/Fine Motor Drive Micromanipulator

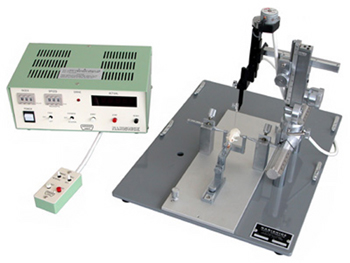

SM-191
