MX-2


Three-Axis Coarse/Fine Micromanipulator with Tilting Stand for More Convenient Patch Clamping

MX-2:  $4,270.27 † - Ships in 1-5 days

Image for Three-Axis Coarse/Fine Micromanipulator with Tilting Stand for More Convenient Patch Clamping coming soon!
(Click to see larger image)
Quantity:

Tell a friend
Contact Us



Narishige's MX-2 is a three-axis coarse/fine micromanipulator comprised of the MX-1 and an attached TM-1 tilting stand, for easier and more convenient patch clamping. Its unique structure prevents hand jitters passing to the tip of the microelectrode, and obviates concerns about drifting caused by temperature fluctuations. The tilting stand offers outstanding stability and allows the manipulator to be set at any angle for easier approach to the specimen. Furthermore, it enables the manipulator to move horizontally as well as vertically in line with the microelectrode. The stand has a magnetic base, so (as long as an iron plate is used) installation is possible even when no screw holes are provided. A rotating mechanism is also included, making the exchange of microelectrodes easy.

Different models for right- and left-handed users are available. Please specify right- or left-handed model when ordering.

Specification
Accessories includedH-1 Electrode Holder
Spanner
Allen Wrench
Tension Adjustment Pin
Movement rangeCoarseX35mm, Y30mm
FineX4mm, Y4mm
Full rotation of knob: 100µm
Minimum graduation: 1µm
Z-axis coaxial handleCoarse/fine movement range: 24mm
Full rotation of coarse handle: 18mm
Full rotation of fine handle: 200µm
Dimensions/WeightW210 × D180 × H265mm, 6.7kg


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.


You Might Be Interested In

NMN-25

Thin 3-Axis Coarse/Fine Mechanical Micromanipulator
(for multi-channel recording)


MINJ-1000

microINJECTOR™ System Complete w/ Inverted Microscope, manipulator


WR-6

Three-Axis Water Hydraulic Micromanipulator


Related Products

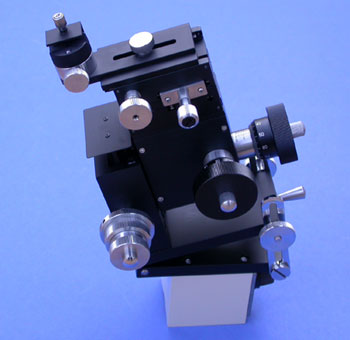

MX-4
