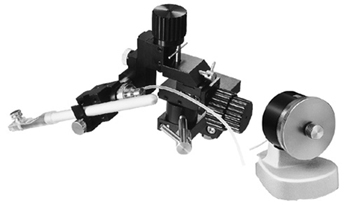

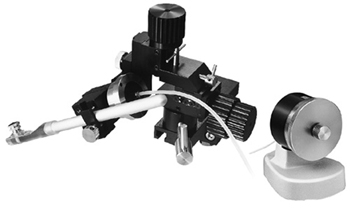

Narishige's WR-6 is a three-axis water hydraulic micromanipulator that is highly recommended for patch clamping from the microscope stage slide.

Employing a water hydraulic system, which has a lower coefficient of expansion due to temperature changes, this model offers precise movement while minimizing drift by incorporating a 1:5 cartridge. In addition, it integrates both coarse and fine manipulation capabilities by featuring a manual coarse manipulator for each axis. The drum type control unit has a large handle for precise operation and high linear repeatability. Design considerations are focused on precision movement and stability over long periods of time. The WR-6 is outstandingly versatile: when set up, it is attached using a bar mount, but independent setup using a magnetic stand is also possible, as is attachment to the side of the microscope stage with an adaptor.

Specifications

Accessories	B-8D Ball Joint, H-1 Electrode Holder, CF-3 Tube Fixture, P-1A Height Adjustment Plate, Allen Wrench
Movement Range	Coarse	X18mm, Y18mm, Z18mm
Movement Range	Fine	X2mm, Y2mm, Z2mm Full rotation of knob 50µm, Minimum graduation 0.2µm
Dimensions/Weight	Control Unit	W115 × D115 × H132mm, 1.6kg
Dimensions/Weight	Drive Unit	W110 × D60 × H140mm, 0.4kg

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.

WR-6

Three-Axis Water Hydraulic Micromanipulator
