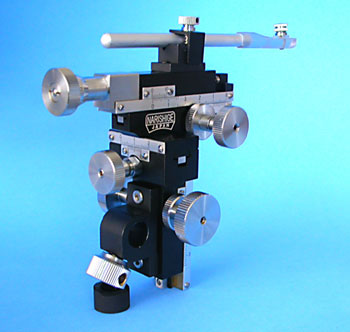

Narishige's ML-3 is a three-axis coarse/fine micromanipulator with a large size and rigid design to maximize stability. This model has a large body and rigid construction, like the MM-3, to improve stability. A single-axis fine movement unit is mounted, which moves in the same direction as the microelectrode and allows careful approach to the specimen. Handles on the X and Z axes are placed on both sides for the benefit of both left- and right-handed users, and the handles offer hardness adjustment to prevent them dropping under their own weight.

*Use GJ-2 magnetic stand or equivalent equipment to attach this model.

*Changing the H-1 that attaches the manipulator to optional oil hydraulic micromanipulator such as MO-10 remote controlled X axis fine movement.

*For details of using the Type A microscope mounting adapter, please contact us.

Specification

Accessories		H-1 Electrode Holder, Dedicated electrode holder, Clamp Rod, Allen Wrench
Movement range	Coarse	X38mm, Y25mm, Z30mm With tension adjustment mechanism
	Fine	X35mm, Full rotation of knob 250um Minimum graduation 10um
Dimensions/Weight		W110 x D90 x H175mm, 1.3kg

*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered.

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.

ML-3

Three-Axis Coarse/Fine Micromanipulator (Similar to MM-3)
