Narishige's MP-1 is a two axis universal "Peteruch type" manipulator. This model features coarse and fine movement units for each of two dimensions (X- and Z-axis). Pivot and tilt functions are provided for very precise operations, and the pole for angle adjustment is the folded type for setting angles on the MP-1's main body.

*GJ-10 magnetic stand (sold separately) is attached to tilting stand

Specification

Accessories		H-1 Electrode Holder, Special Screwdriver, Allen Wrench
Movement range	Coarse	X60mm, Z50mm
	Fine	X4mm, Z4mm, Full rotation of knob 250um Minimum graduation 10um
	With pivot and tilt mechanism
Dimensions/Weight		W150 x D130 x H175mm, 3.7kg

*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered.

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.

MP-1

Two-Axis Universal Micromanipulator (with Tilt and Pivot Mechanism)

You Might Be Interested In

MN-151

Three-Axis Coarse/Fine Joystick-Type Micromanipulator

MINJ-1000

microINJECTOR™ System Complete w/ Inverted Microscope, manipulator - Inquire

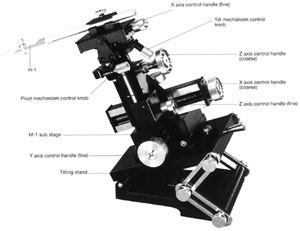

MP-2
