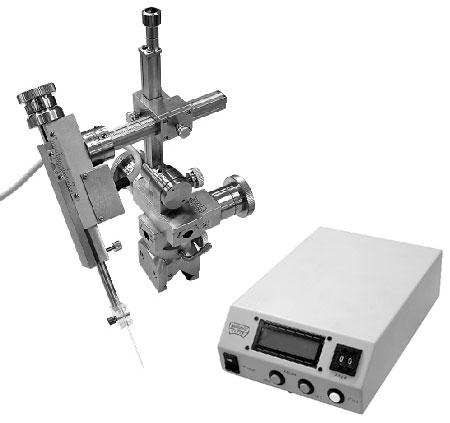

Narishige's DSM-11 stereotaxic micromanipulator digitally displays coordinates calculated by angle in real-time.

The distance traveled by the slider is displayed digitally, improving the efficiency of experiments using stereotaxic instruments. In addition to the DSM-11, which can be used as-is in stereotaxic instruments, the DSM-11D and DSM-15D, which include digital scales on our SM-11 and SM-15 micromanipulators, are provided.

Specification

Accessories included		Special Screwdriver AC Power Cord Allen Wrench
Movement range	Coarse	Z60mm
Movement range	Fine	X30mm, Y30mm, Z35mm Full rotation of knob 500µm
Measurement range		0 - +35mm
Resolution		1µm
Accuracy		±1µm
Angle setting range		0 - 90°
Power Source		AC100 (±5%), 50/60Hz AC120 (±5%), 50/60Hz AC220 (±5%), 50/60Hz AC240 (±5%), 50/60Hz
Power Consumption		5W or less
Dimensions/Weight	Drive unit	W150 × D132 × H225mm, 1.9kg
Dimensions/Weight	Control unit	W150 × D220 × H70mm, 2.3kg

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.

DSM-11

Stereotaxic Micromanipulator (with Digital Scale)

Specification
