Electronic Microinjector

(Click to see larger image)

The IM-401 is a modern update, bringing Narishige's line of Electronic Microinjection Controllers up to and surpassing 2025 standards. Instead of lots of buttons, dials, and a large foot-print like their IM-300, this update uses a touch screen with one knob, a small vertical footprint,and provides an ergonomic foot pedal to trigger it.

This electric microinjector allows for the precise injection of small liquid volumes, optimized for DNA/RNA injection, gene transfer, etc. The intuitive touch panel makes it easy to adjust the injection pressure, time, and balance pressure. Injections can be performed using either a panel button or included foot switch.

Improved Balance pressure control
The IM-401's balance pressure can be adjusted in 0.1kPa increments from 1 to 100kPa. This improved feature enables stable balance pressure control when injecting under water or against back-pressure, and facilitates use of micropipettes with relatively large tip diameters. The IM-401 has been optimized to return from injecting pressure to balance pressure quickly and smoothly with minimal fluctuation.

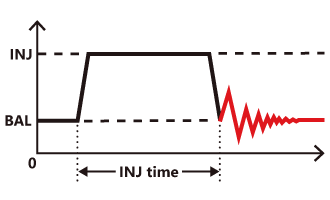

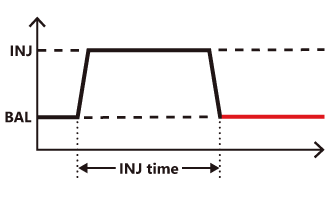

Graph of pressure control: Previous model	Graph of pressure control: IM-401



Compatible with various pipettes


These optional attachments are sold separately and allow users to replace the cap on the included injection holder with different types of pipettes.



Third-party screw-type Tip *Please contact us.	HIC-1.2 (For 1.2 mm OD pipette)	HIC-1.5 (For 1.5 mm OD pipette)



Note: The IM-401 requires an external pressure source to operate. If you have laboratory compressed air available, ask us about available adapters to use if conveniently. Otherwise, we offer MINJ-CMPR1, a small quiet air compressor or TREG-N2, a nice Nitrogen cylinder pressure regulator.



Accessories included		Connecting cable for display control unit (1.5m) Injection holder (HI-9) Cleaning rod Tubing (CT-4, ø2mm × 1.2m) Gas input hose (ø6mm × 2m, ø6mm × 1m) Pipe fitting for gas input hose T-joint with a pressure relief valve Foot switch (connecting cable 2.9m) Power cord (1.5m) Silicone rubber gasket (HI01PK01)
Gas Input/Output	Gas Input Port	for Ø 6mm diameter hose
	Gas Output Port	for Ø 2mm diameter tube
Supply Pressure		0.4 ~ 0.7MPa
Gas pressure	Injection/Balance pressure	0 ~ 0.5MPa
	Flushing pressure	0.4 ~ 0.7MPa
Power supply		AC100V ~ AC240V, 50/60Hz
Power consumption		15W
Fuse rating		T1A=250V (EN60127-2 sheet3)
Dimensions/Weight	Control Box	W120 x D211 x H264mm, 3.1kg
	Operation Unit	W120 x D153 x H61.5mm, 780g

Model	Product	Description
HI-01-PK01	Silicone Rubber Gasket	For 2.5mm (10 pcs)



---

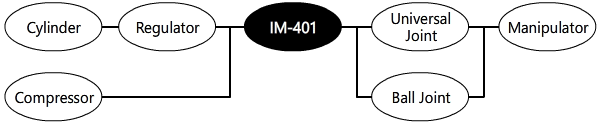

System Diagram
