IMS-4


Microinjector for performing injections into the brain

IMS-4:  $1,754.59 † - Ships in 3-5 days

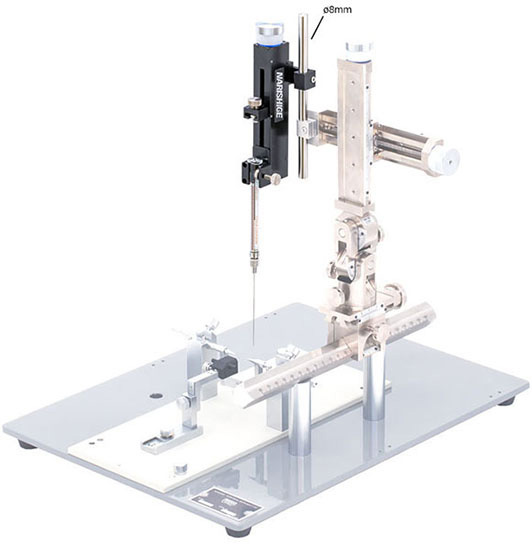

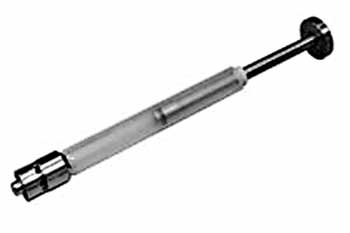

This is a manual injector designed for brain injection which is used with a glass syringe. Attached to the stereotaxic micromanipulator SMM-series, turning the control knob by hand pushes the plunger slowly, allowing injection of small volume. Suction is also possible as the plunger is fixed by a knob and pulled. The syringe is attached and detached from the front of the main body, which permits handling a syringe without hitting the tip of a sterilized needle. The connecting bar is included in the accessories for the stereotaxic micromanipulator, and the mounting bracket can change the orientation of setup. Suitable for large-volume injection and ICV administration, etc.

Specification
Acceptable syringe ø5 - ø10mm
Movement range Fine 50mm
Full rotation of knob: 500µm
Dimensions/Weight W45 × D52 × H143mm, 251g
