MAG-1


Simple Head Holder Plate (for Mice)

MAG-1:  $491.89 - Ships in 5-7 Days
* Attachable chambers: CF-10, CP, CP-1, CP-2

For observations of a mouse under a microscope.

After bonding a chamber onto the head of a mouse (for example using temporary or permanent dental cement) on the SR-9M-HT Stereotaxic Instrument, the chamber can be transferred to the MAG-1 and placed under a microscope or other instrument for performing observations and experiments. Designed to be compact in size, the MAG-1 can be placed under a two-photon microscope or stereomicroscope.

In the photo shown, the two silver colored bars are actually the two long sides of the rectangular CF-10 stainless steel frame.

Specifications:
Accessories includedCF-10 Chamber Frame (1 pcs
Dimensions/WeightW96 x D84 x H42mm, Approx. 102g


* The chamber frame is customizable to your own application. Please contact us for details.
* The CFR-1 Chamber Frame (for rats) can NOT be attached.

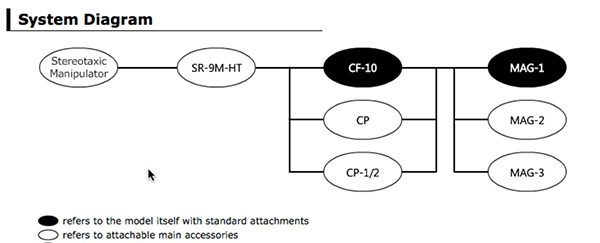

MAG-1 system diagram
