For applications that require a specific volume to be delivered or aspirated in the nanoliter to milliliter range, Tritech Research offers the motorized MINJ-PD Digital Positive Displacement microINJECTOR. Unlike most other microINJECTORs, this system does not require attachment to a gas cylinder, pump, or compressed air line.

With the injection volume and speed set in advance, this motor-driven microinjector injects very small volumes of liquid with precision control via a foot switch, leaving both hands free for micromanipulation and focusing the microscope. There is also a Manual Mode that allows the user to inject without knowing the volume in advance. In Manual Mode, the MINJ-PD keeps a tally of the amount injected. The specifications of the MINJ-PD allow precise control of injection and aspiration.

For stem cell injection, a special built-in Agitation Mode helps to prevent cells from clumping and settling on the wall of the needle.

The MINJ-PD employs the same user-friendly microprocessor interface as the MINJ-D. It digitally synthesizes injecting / aspirating volume and speed, as well as agitating volume and speed, reproducibly. Using a simple "Menu" button, and Plus and Minus buttons, anyone can set the volumes and the speeds in seconds. Here are the key features and specifications of the Positive Displacement Digital microINJECTOR:

Most compact and robust on the market
6" x 7" x 3" and weighs under 2 lbs.
(15cm x 17cm x 7cm and weighs under 1 kg)
Simple 3-button control
Digital display with backlight for easy reading
Microprocessor accuracy
Foot pedal included for hands-free injection control
Total syringe volume: 100uL (standard), or available 250 uL (MINJ-PD-S250) and 500uL (MINJ-PD-S500) options
Programmable Injection volume: 0.01 - 25.00uL (with 100 uL syringe)
Programmable Injection speed: 0.4 - 25.0s/uL
Programmable Agitation volume: 0.1 - 25.0uL
Programmable Agitation speed: 0.3 - 25.0s/uL
Manual Injection Mode

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.

Microinjectors

Motorized Microinjector for continuous injection at a fixed speed with minimal vibration

IMS-10: $4,540.54 † - Ships in 1-5 days

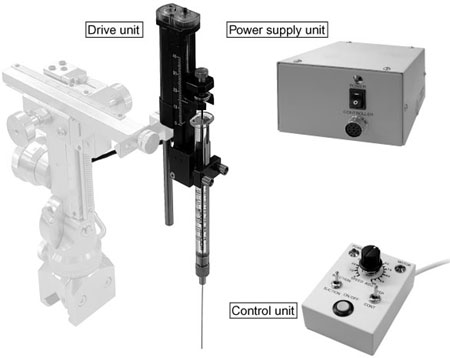

Image for Motorized Injector coming soon!

Narishige's IMS-10 is a motorized microinjector primarily attached to a stereotaxic micromanipulator (such as SM-15). This microinjector allows continuous injection at a fixed speed, which is difficult to do with a manual microinjector, and it improves reproducibility when replicating the same experiment. In addition, the amount injected can easily be changed by replacing the syringe used (supported syringes: outer dia. 7mm - 10mm).

SPECIFICATION

Accessories included		AC Power Cord Knobs for Syringe Installation
Movement range	Fine	40mm
Speed	Maximum	Approx.180µm/s
Speed	Minimum	Approx.20µm/s
Power Source		AC100 (±5%), 50/60Hz AC120 (±5%), 50/60Hz AC220 (±5%), 50/60Hz AC240 (±5%), 50/60Hz
Power Consumption		15W
Dimensions/Weight	Drive unit	W20 × D30 × H130mm, 0.16kg
	Control unit	W65 × D85 × H60mm, 0.3kg
	Power supply unit	W125 × D105 × H85mm 1.3kg
