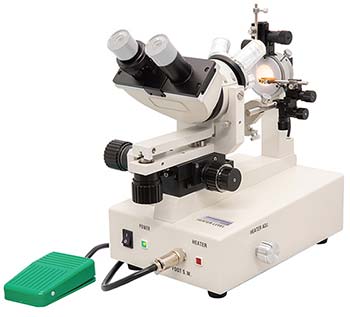

Narishige's MF-830 microforge provides an ultra-fine finish to microelectrode tips for patch-clamp applications. The MF-830's advanced fire-polishing technology eliminates imperfections on the microelectrode surface which would otherwise damage delicate membranes when making tight patch seals.

The MF-830 features independent micromanipulators for positioning of the heater element and microelectrodes, as well as independent controls for heater and lamp adjustment. The unit features magnifications of 75X and 525X, with optional objective and eyepiece combinations available.

Specification

Accessories included	Foot Switch, Spare Heater, Spare Lamp, Power supply Cable, Allen Wrench
Movement range	Heater manipulator: X14mm, Y14mm, Z14mm Heater manipulator vertical fine movement: 20mm Electrode manipulator: Y12mm, Z28mm Microscope focus movement range: 30mm
Magnification	75x/525x (Eyepiece: 15x, Objective lenses: 5x and 35x)
Glass capillary	O.D.1mm - O.D.1.5mm
Power source	AC100V(+-5%), 50/60Hz AC120V(+-5%), 50/60Hz AC220V(+-5%), 50/60Hz AC240V(+-5%), 50/60Hz
Power consumption	Approx. 35W
Dimensions/Weight	W200 x D350 x H300mm, 6.5kg

Consumable

Model	Product	Description
[page PT-A>PT-A	Platinum heater	100um x 1m

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.

Microforge

MF-900: $7,297.30 † - Ships in 1-5 days

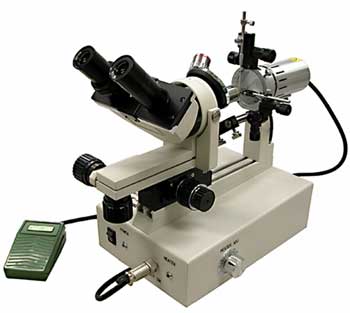

Narishige's MF-900 is a versatile microforge with multiple functions for making different kinds of microtools.

Based on Narishige's many years of practical experience, the MF-900 offers a wide range of functions for making many different kinds of microtools by processing microneedle tips. A pair of easy-to-use manipulators are provided for positioning the heater and pipette, and the microscope can be moved three-dimensionally using controls close to the operator's hand. Separate rotation mechanisms for vertical and horizontal movement allow the pipette to be approached at any angle, while a special device in the heater section can form it into any required shape. In addition to conventional scales, a protractor to measure angles is provided in the microscope eyepiece. The heater turned ON and OFF via a foot switch, and the heater section is integrated into the microscope body, so all control actions are performed easily, precisely and ergonomically.

Specification

Accessories included		MF-900F Foot Switch, AC Power Cord Dedicated Pipette Holder, Allen Wrench Spare Heater, Spare Lamp Silicone Rubber Gasket
Movement range	Heater manipulator	X14mm, Y14mm, Z14mm
	Pipette manipulator	X12mm, Z28mm
	Microscope	X approx. 7mm, Y30mm, Z approx. 8mm
Magnifications		50x/100x (Eyepiece 10x, Objective Lenses 5x, 10x)
Glass capillary		∅1mm
Power Source		AC100 (±5%), 50/60Hz AC120 (±5%), 50/60Hz AC220 (±5%), 50/60Hz AC240 (±5%), 50/60Hz
Power consumption		Approx. 35W
Dimensions/Weight		W200 × D350 × H300mm, 6.1kg

Optional accessories

Model	Product	Description
MF-OP	Optional lens kit for MF-900	35x objective lens 15x eyepiece with micrometer 15x eyepiece without micrometer
MF-OPA	Optional objective for MF-900	35x objective lens
MF-OPB	Optional eyepiece for MF-900	15x eyepiece without micrometer
MF-OPC	Optional eyepiece for MF-900	15x eyepiece with micrometer

Consumables

Model	Product	Description
PT-B	Platinum wire heater	150µm × 300mm
MF-900L3	Lamp	Replacement bulb
