Microscopes

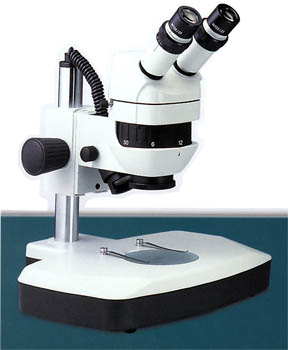

Stereo-Microscope System w/optics and illumination (similar to Wild M5a)

  Quantity Pricing
$2,589.19 - Regular price.
$2,427.03 - 2 or more.
$2,264.86 - 3 or more.
Image for Stereo-Microscope System w/optics and illumination (similar to Wild M5a) coming soon!
Tritech Research is pleased to offer a fantastic, complete dissecting stereo-microscope system for thousands of dollars less than any competing system.

You are probably used to seeing stereo-microscopes priced in the $3000-$7000 range. Remarkably, we are offering a system with high-quality optics, equal to the best microscopes, at an unequaled low price! This model is an update to the Wild-M5a "clones" that we have been selling for years. It has the same optics with a more modern look and a more ergonomic base. The expert optics and mechanics of our system will let you see all the fine details of your specimens with the utmost clarity.

Each system includes all of the following:
  • 1 Stereo-microscope body
  • 1 Integrated power supply and lighting system to control brightness of both trans and incidental illuminators
  • Trans (through), incident or simultaneous illumination
  • 1 frosted glass and 1 black & white plate for the base

Plus, choose any three of the following optical accessories absolutely FREE:
  • 10x (3x-100x)   Eyepieces
  • 15x (4.5x-150x)   Eyepieces
  • 20x (6x-200x)   Eyepieces
  • Reticle / Micrometer Eyepieces
  • 0.5x (3x-50x)   Objective
  • 1.5x (9x-150x)  Objective
  • 2.0x (12x-200x)  Objective

The stereomicroscope is available with fiber-optic illumination upgrade options. Fiber-optics can deliver very bright white sustained illumination with much less heat to your sample than that imparted by standard illumination. One fiber-optic upgrade includes a special base with an adjustable frosted mirror for greater control of transillumination, a bendable fiber-optic light pipe, and a super-bright remote light source. Click here to see it. The other fiber-optic upgrade includes a choice of flat or standard bases, a bifurcated (double) gooseneck fiber-optic light pipe, and the super-bright remote light source. Click here to see the bifurcated light pipe.

The stereomicroscope is also available with a mirror transillumination base upgrade which features a frosted mirror on one side and a shiny mirror on the other. The base can be used as is with the fiber-optic illumination upgrade or as a part of the mirror transillumination base with LED transilluminator upgrade. This upgrade uses our own built-in LED illuminator that costs less than a fiber-optic illuminator, can get just as bright, is the same white color at all brightnesses, and has a 40,000 hour bulb life vs. about 1,000 hours for the halogen fiber optic units.

At our incredible price, order three for the price of one of our competitors' scopes. If you are not fully satisfied, we have a 30-day money back guarantee (MBG only applies to one scope, so if you are not sure, order one scope to prove it works for your application, and we will still honor all quantity discounts when you order more within 30 days). One full year replacement warranty for manufacturing defects.

This system meets all of your dissecting microscope needs. The magnification changer ring allows you to switch between 6x, 12x, 25x, and 50x magnification of the eyepiece/objective combination with the turn of your fingers. The lenses are ground and mounted so precisely that it is seldom necessary to re-focus when switching from one magnification to another. Illumination from above is ideal for microsurgery, dissection, insect (Drosophila) and plant (Arabidopsis) genetics, while illumination from below is ideal for Nematode (C. elegans) and fungal (Saccharomyces, Neurospora, etc.) genetics and micromanipulation.

FAQ's

Q: What is the difference between the Trinocular C and T mounts?
A: The T-mount is for a regular SLR camera (such as the ones photographers use) and also needs a brand-specific adapter for the camera. The C-mount is a standard threaded mount for microscope cameras that do not have their own lenses. The image is projected directly on the camera's sensor chip. The idea is to match the de-magnification so that the image just covers the chip. For example, a 0.35x C-mount adapter is good for a camera with a chip size of 0.25-0.50 inch diameter, and a 1x C-mount adapter is good for a camera with a chip size of 1 inch diameter.

Q: How does the light source get divided between the binoculars and the 3rd lens in trinocular adapters?
A: The trinocular adapter works by taking all of the light that normally goes to the left eyepiece and reflecting it up into the C-mount adapter/camera. It has two controls- one that redirects the left optical path and one that is a diaphragm that allows the user to reduce the amount of light going to the camera and eyepieces, which slightly increases the sharpness.

Q: Which type of eye piece and objective combination is recommended for C. elegans versus other types of research?
A: For C. elegans work, we would recommend the 10x eyepiece as the standard with the 1.5x objective as it increases the magnification range of the scope from 6 - 50x up to 9 - 75x and reduces the depth of field. However, the 0.5x objective is good for behavioral studies where you need to image the entire plate in one field of view at 3x. So, it depends on your application which is more useful. You can also get one of each if needed.
We recommend either the 10x or 20x eyepieces for research work with eggs.

Q: The microscope will not turn on. Is the issue with the microscope bulb and will a replacement bulb solve the problem?
A: We are pretty sure the problem is not the LED. Please double-check that:
1) The power supply is plugged in to a good outlet. (you will notice it has a little green LED on it).
2) Please double-check that the main power switch (on the left side, as you are sitting in front of the microscope, reaching back) and the transilluminator power switch, on the right side, are both in the on (1) positions. (There are 3 total switches on the back).
3) Make sure that the brightness control, (the big wheel on the right side of the base) is not set to the lowest position, where the light is off).

Q: My SMT1 scope is having trouble staying in focus. How can I adjust the focusing knob to stay in place?

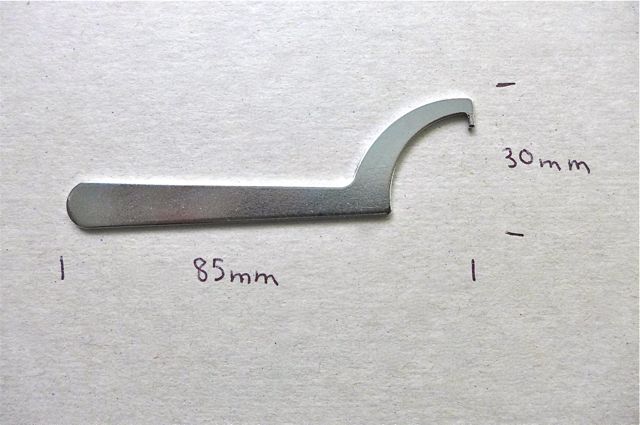

A: When you got the scope, it should have included a c-wrench. The little pin inserts into any one of the several holes on the silver rings just proximal to the focus knobs. By turning the rings with the holes clockwise (when facing the focusing knobs) it increases the tension. It is best to adjust both sides a little instead of one side a lot. Find the point where it no longer slides when you push down on the scope by hand, but still moves easily when turning the knobs.

Q: What is the purpose of the black ring and where does it go on the SMT1 scope?
A: It's supposed to go under the frosted glass plate to make a nice circle where the illumination is even, but all it does is block the light that is not in the circle. However, we personally suggest to leave it out.

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:
Base and Illumination
Fiber-Optic Illuminator
First Free Accessory
Second Free Accessory
Third Free Accessory
Replacement Bulbs
Camera Mounts


Low-Cost GFP/ RFP Fluorescence Stereo-Microscope System

  Quantity Pricing
$7,345.95 - Regular price.
$7,075.68 - 2 or more.
$6,805.41 - 3 or more.
Image for Low-Cost GFP/ RFP Fluorescence Stereo-Microscope System coming soon!
For several years, our customers, impressed by the excellent optics and great price of our SMT1 Dissecting Stereomicroscopes, have been asking for a Fluorescence Dissecting Scope in the same vein of quality and economy.  After lots of research and development, recently presented at the International C. elegans Meeting, the result is the SMT1-FL. Note: for our new ultra-high performance multi-fluorophore dissecting scope, check out the SMT1-FL-QC!

The microscope is available with a few different options for the base/stand and illumination. Fluorescence illumination is always from the top, and we have options that allow for different types of standard white-light illumination of your specimens. For top lighting, select our standard "ergonomic" base and add our dual goose-neck LED illuminator. For transillumination (through the sample), you can use our standard "ergonomic" base with frosted glass plate and built-in fixed LED illumination of ∼30mm in diameter. For an upgraded transillumination option, select our taller, narrower, triangular transillumination base with a large rotatable and translatable mirror. This upgraded base employs a larger frosted mirror and clear glass plate. Moving the diffusion farther from the specimen increases contrast and resolution. The larger mirror can illuminate a sample ∼50mm in diameter, and changing its angle and position allows for optimal contrast to visualize internal structures (for example structures within the C. elegans pharynx and embryos, or within internal organs of Zebrafish, Xenopus, chick and mammalian embryos). Click here to see the triangular base on our non-fluorescence scope with an old-school halogen fiber-optic illuminator. An optional foot pedal allows for the white illumination to be flashed on as needed to orient samples without moving your hands or losing your dark-adapted vision.

The Tritech Research Fluorescence Dissecting Stereo-microscope replaces the old cumbersome mercury arc lamp with a state-of-the-art Light Emitting Diode (LED) illuminator.  This dramatically lowers power consumption, heat, and the cost of accessory optics and power supplies.


For example:


Fluorescence Illumination
Mercury Arc Lamp
Tritech LED System
Watts consumed
200
4
Lifespan (hours)
250 10000
Cost per bulb (US$)
$250 $25
Bulb Cost / 10000 hrs
$10,000 $25
Power cost @ $.2 / kW-hr
$500 $1
Total Cost of disposables
$10,500
$26
Cost of Scope + Acces.
$18,000
$6,795
Total Cost
$28,500
$7,021



Advantages
1 lamp for fluorophores
low heat output


energy efficient


40x lifespan


dichroic mirror optional


1/400 bulb cost


1/500 power usage


no UV danger


no high-voltage danger


no toxic Hg concerns


less expensive housing

Our system uses ultra-high-quality multi-coated filters to isolate the excitation and emission wavelenghts from each other by up to 4 orders of magnitude, keeping bleed-through background at a minimum.


UNC-25 GFP

The nematode C. elegans expressing the [Punc-25::GFP] transgene (juIs76). unc-25 encodes glutamic acid decarboxylase (GAD). UNC-25 is expressed specifically in GABAergic neurons and localizes to cell bodies, axonal branches, and synaptic regions in the 19 type D motor-neurons, most notably shown here in the 13 ventral nerve cord neurons.


MYO-2 RFP

C. elegans expressing a [Pmyo-2::dsRed] transgene. myo-2 encodes a tissue-specific myosin class II heavy chain. MYO-2 is expressed specifically in the muscles of the pharynx, as shown here by the expression of the Red Fluorescent Protein dsRed.


DROS-8 GFP
Larvae of transgenic Drosophila melanogaster expressing GFP in their salivary glands.

"Tritech Research is the first and only company to offer LED-based complete GFP Dissecting Stereo-microscope Systems, saving customers thousands of dollars. Traditional Mercury arc lamp based fluorescent systems cost up to $35000. They have perfected the LED-based GFP microscopy and completely eliminated the mercury arc lamp and associated optics, bringing the price of the microscope to one third of its previous cost!."

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:
Fluorophores
Base and Illumination
Camera Mounts


Low-Cost Fluorescence Stereo-Microscope Multi-Fluorophore System

  Quantity Pricing
$11,886.49 - Regular price.
$11,616.22 - 2 or more.
$11,454.05 - 3 or more.
Image for Low-Cost Fluorescence Stereo-Microscope Multi-Fluorophore System coming soon!
If you got here from a link you saw on Twitter, click here to follow us for more deals and promotions!

Because you're a scientist, we've included a lot of details about our new product so that you can understand it and compare it with others, but if you'd like to talk with a person, just pick up the phone and call our tech support staff, 24/7. The SMT1-FL-QC (Pats. pending) is the culmination of our years of research to bring a research-grade, full-featured, low-cost fluorescence dissecting stereomicroscope to the scientific community that is affordable to the education community as well. It allows for rapid switching between different fluorophores like GFP and RFPs in under 1 second and is reconfigurable between multiple fluorophores in just seconds with no tools! With our technology, excitation sources are incredibly bright and background fluorescence is minimized, so dim signals are often visible and many phenotypes can be seen even in a brightly lit room. This is not a mediocre add-on kit with lots of compromises. This is a complete fluorescence microscope system for less than the price of other high quality plain dissecting stereomicroscopes!

If you are considering the Zeiss Axio Zoom.V16, the Leica MZ10 F, M205 FA, M165 FC, the Nikon SMZ25, SMZ18, or the Olympus SZX16, MVX10, or SZX10, you really need to take a look at our SMT1-FL-QC to see how much money you can save - not only on purchase price but on maintenance costs while gaining increased equipment life span. Before getting into the great features of our low-cost fluorescence dissecting scope, we want you to know that our better prices do not equate to lower quality… they derive from superior engineering and a different company philosophy. When someone buys a microscope from the "Big 4", they are not just paying for the microscope… they are paying for tons of advertising, marketing, sales commissions and other hidden costs. At Tritech Research, we forgo all of those expenses and rely on great word-of-mouth recommendations within the scientific community… so your precious grant budget or start up funds can be stretched further since they only pay for the microscope itself! Tritech Research isn't a start up; we've been selling dissecting stereomicroscopes for over 25 years, since our inception in 1991. We operate on a lean budget and put money from your purchase back into Research and Development of new products to save even more money for the scientific community while delivering new enabling technologies like this microscope!

4 quick-change LED fluorescence modules

How does it work?

First, we replaced the expensive mercury arc lamp, power supply, and bulbs that cost about $200 and last only 200 hours with super-bright, energy-effcient LEDs that last about 40,000 hours. We've sourced the brightest LEDs in the world, and designed optics to harvest almost every photon relevant to exciting your fluorescent samples.

Our modules employ two excitation beams that intersect in the focal plane of your specimen. This doubles the signal without doubling the background fluorescence* (Pats. Pending). Each compact, interchangeable module uses the finest dichroic filters to refine the excitation and emission wavelengths for bright, clean imaging and a powerful magnetic system for easy, tool-free installation and changing of configuration to suit any single, double, or triple labeled experiment.

While playing with the magnets above, we invented a slider system uses magnetic detents (Pats. Pending) for robust, wear-free operation. A single sliding operation precisely positions the excitation and emission filters, and energizes the module.

The microscope is available with a few different options for the base/stand and illumination. Fluorescence illumination is always from the top, and we have options that allow for different types of standard white-light illumination of your specimens. For top lighting, select our standard "ergonomic" base and add our dual goose-neck LED illuminator. For transillumination (through the sample), you can use our standard "ergonomic" base with frosted glass plate and built-in fixed LED illumination of ∼30mm in diameter. For an upgraded transillumination option, select our taller, narrower, triangular transillumination base with a large rotatable and translatable mirror. This upgraded base employs a larger frosted mirror and clear glass plate. Moving the diffusion farther from the specimen increases contrast and resolution. The larger mirror can illuminate a sample ∼50mm in diameter, and changing its angle and position allows for optimal contrast to visualize internal structures (for example structures within the C. elegans pharynx and embryos, or within internal organs of Zebrafish, Xenopus, chick and mammalian embryos). Click here to see the triangular base on our non-fluorescence scope with an old-school halogen fiber-optic illuminator. An optional foot pedal allows for the white illumination to be flashed on as needed to orient samples without moving your hands or losing your dark-adapted vision.

As this is a Tritech brand product, it is covered by our money-back guarantee and limited warranty. Order it with confidence and try it in your own lab or classroom. If you have concerns about being able to visualize a particular sample, you can even mail us a sample, and we will e-mail you a photo of what we can see with the scope!

Here is a video that shows how easy it is to assemble the scope and use it:




Here are some images of samples examined with the scope:

UNC-25 GFP

The nematode C. elegans expressing the [Punc-25::GFP] transgene (juIs76). unc-25 encodes glutamic acid decarboxylase (GAD). UNC-25 is expressed specifically in GABAergic neurons and localizes to cell bodies, axonal branches, and synaptic regions in the 19 type D motor-neurons, most notably shown here in the 13 ventral nerve cord neurons.


MYO-2 RFP

C. elegans expressing a [Pmyo-2::dsRed] transgene. myo-2 encodes a tissue-specific myosin class II heavy chain. MYO-2 is expressed specifically in the muscles of the pharynx, as shown here by the expression of the Red Fluorescent Protein dsRed.


DROS-8 GFP
Larvae of transgenic Drosophila melanogaster expressing GFP in their salivary glands.

"Tritech Research is the first and only company to offer LED-based complete GFP Dissecting Stereo-microscope Systems, saving customers thousands of dollars. Traditional Mercury arc lamp based fluorescent systems cost up to $35000. They have perfected the LED-based GFP microscopy and completely eliminated the mercury arc lamp and associated optics, bringing the price of the microscope to one third of its previous cost!." FAQ's

Q: On the SMT1-FL-QC I noticed that there is a partial occlusion of the field of view in the left eyepiece (like a mild waning gibbous moon). This only is visible at 6x magnification - I can see the whole field clearly at higher magnifications. Why is this?
A: The module is the whole unit with the colored emission filter holder plus the dual excitation light source. But technically, the part than may be twisted or jacked up/down is the black box containing the dual excitation light source, relative to the colored emission filter holder. The illuminated spot is purposely smaller than the 6x field of view. At 12x, the edges are a little dimmer, and at 25x + the field should be fully illuminated. The best, brightest images will be seen at 12x and 25x. Hopefully the modules were still aimed perfectly when they arrived. If you're careful when you install and remove them, you won't have to re-aim anything. Sometimes the "slider holder" (the black part under the objective that the slider slides through) can shift in angle if someone pulls down on one side of the slider. In that case both modules will still illuminate the same spot, but it will be off-center.... and then you should fix the slider-holder instead of aligning the modules.
Perhpas you are not referring to the portion of the 6x field of view that is illuminated by the converging beams, but instead you are referring to the entire field of view (for example what you see when the sample is illuminated from the bottom. If that is the case, it sounds like the slider is just not exactly stopped in the center of its magnetic detent. Try manually sliding the slider left and right while looking through the scope and see if you can get rid of the gibbous.

† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:
Base and Illumination
Trans-Illumination
Top Illumination
1st Fluorophore
2nd Fluorophore
3rd Fluorophore
4th Fluorophore
5th Fluorophore
Camera Mounts

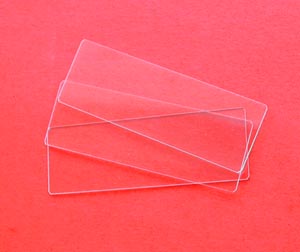

Slides

Image for Slides coming soon
Our slides are top-quality. If you find a lower price anywhere, tell us.

Item Number   Description Quantity per case Price Qty ->Cart
TDF Slides, frosted both sides - (3600 Slides/ctn) 50 Pks of 72 = 3600 $254.05
TFS Slides, frosted single side - (3600 Slides/ctn) 50 Pks of 72 = 3600 $232.43
TPS Slides, plain - (3600 Slides/ctn) 50 Pks of 72 = 3600 $211.89


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.

Tell a Friend!



Stereo-Microscope Accessories


Fiber Optic Illuminator

  FOI:  $594.59 - In Stock
Image for Fiber Optic Illuminator coming soon!
Tritech Research is proud to offer a high-quality fiber optic illumination system at less than half the cost of other similar systems. The Focusing Lens shown is not included and can be added when the output needs to be focused / collimated for use from a distance.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

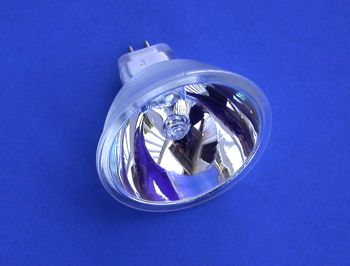

Replacement bulb for Fiber-Optic Illuminator / Light Source

  FOI-150W:  $21.62
Image for Replacement bulb coming soon!



† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

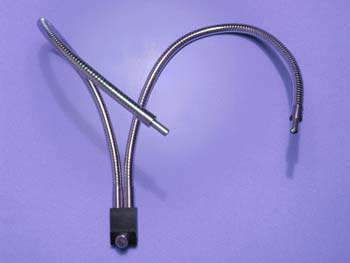

Bifurcated Gooseneck Fiber-optic Light Pipe

  FOI-BGLP:  $318.92
Image for Bifurcated Gooseneck Fiber-optic Light Pipe coming soon!
Tritech Research's high-quality bifurcated fiber-optic light pipe splits the light source into two aimable beams. The "gooseneck" sheath holds its shape after you position it, so the light stays where you want it. If they need to be aimed from a distance of more than a few inches (several cm), you can add Focusing Lenses.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

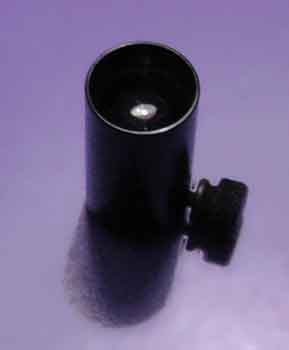

Focusing Lens for Fiber-optic Light Pipe

  FOI-FL:  $70.27 - In Stock
Image for Focusing Lens for Fiber-optic Light Pipe coming soon!
This lens attaches to the end of Tritech Research's high-quality fiber-optic light pipes (both single and bifurcated). By positioning the lens, the fiber-optic beam can be focused, and to some degree, collimated.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

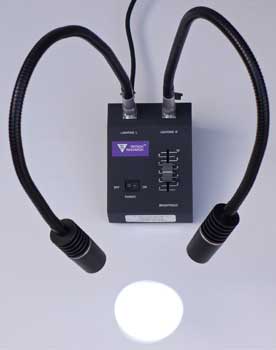

LED Dual Goose-neck Illuminator for Microscopes

  LED-GN-DUAL:  $756.76 - In Stock
Image for LED Dual Goose-neck Microscope Illuminator coming soon!
This 21st century dual gooseneck illuminator delivers a similar amount of light to your sample with 6 watts of LED power as a 150 watt halogen fiber optic light pipe system. Key improvements over traditional halogen microscope illuminators are:

  • 25x more energy efficient
  • 40x longer bulb life
  • silent operation (no fan needed)
  • white color spectrum remains the same regardless of light level
  • Minimal extra heat generated

This system includes two 23 inch (59 cm) gooseneck illuminators that stay put where you aim them.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:
Power Options


Eyepiece with Micrometer (10X, 15X, 20X Magnification)

  SMEPM:  $135.14 - Ships in 3-5 days
Image for Eyepiece with Micrometer (10X, 15X, 20X Magnification) coming soon!
This eyepiece with built-in micrometer is available in both 10X and 20X magnifications. It may be included as one of your three FREE accessories when purchasing an SMT-1 Stereomicroscope, or may be purchased separately.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

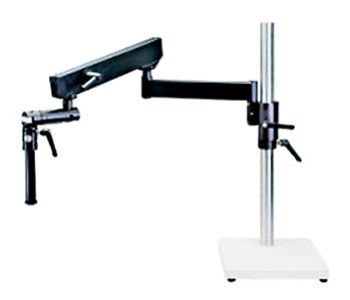

Articulating Arm Boom Stand, Base Stand Version for SMT1

  SMT1-AABS:  $567.57
Image for Articulating Arm Boom Stand, Base Stand Version for SMT1 coming soon!
Diameter of vertical post is 32mm. Diameter of post for focusing mount is 25mm with a 32mm stop. Vertical pole is 400mm tall.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

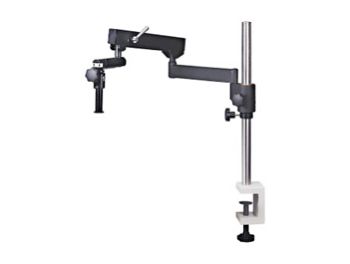

Articulating Arm Boom Stand, Table Clamp Version for SMT1

  SMT1-AABST:  $567.57
Image for Articulating Arm Boom Stand, Table Clamp Version for SMT1 coming soon!
Diameter of vertical post is 32mm. Diameter of post for focusing mount is 25mm with a 32mm stop. Vertical pole is 400mm tall. The table clamp can open up to 75mm.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

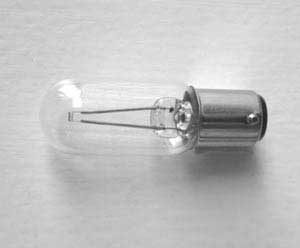

Stereo-Microscope System Bulbs

  SMT1-B:  $16.22 - Ships in 3-5 days
Image for Stereo-Microscope System Bulbs coming soon!
Need a replacement bulb for your SMT-1?
These 6 volt 15 watt tungsten bulbs fit our original model with founded scope body and gray mirror base. Our new replacement bulbs for the SMT-1 Stereomicroscope System are rated at 100 hours of life.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:


Stereo-Microscope System Bulbs

  SMT1-B2:  $16.22 - In Stock
Image for Stereo-Microscope System Bulbs coming soon!
Need a replacement bulb for your SMT-1?
These 12 volt 10 watt halogen bulbs fit our new model with square scope body and beige ergonomic base. Our new replacement bulbs for the SMT-1 Stereomicroscope System are rated at 2000 hours of life.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

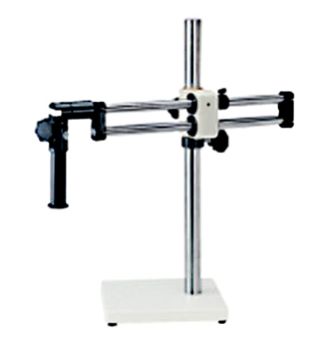

Ball Bearing Boom Stand, Base Stand Version for SMT1

  SMT1-BBBS:  $643.24
Image for Ball Bearing Boom Stand, Base Stand Version for SMT1 coming soon!
Diameter of vertical post is 32mm. Diameter of post for focusing mount is 25mm with a 32mm stop. Vertical pole is 400mm tall.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

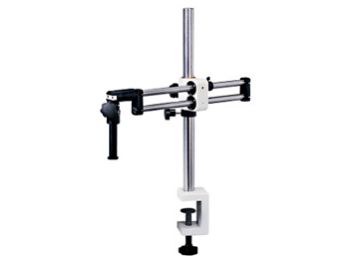

Ball Bearing Boom Stand, Table Clamp Version for SMT1

  SMT1-BBBST:  $643.24
Image for Ball Bearing Boom Stand, Table Clamp Version for SMT1 coming soon!
Diameter of vertical post is 32mm. Diameter of post for focusing mount is 25mm with a 32mm stop. Vertical pole is 400mm tall. The table clamp can open up to 75mm.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

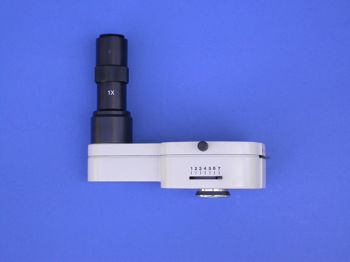

C-Mount Trinocular Phototube for SMT1

  SMT1-CFT:  $648.65
Image for C-Mount Trinocular Phototube for SMT1 coming soon!
For use with digital video cameras

Includes: Optical Bridge with Double Iris; C-mount adapter. Please specify the level of de-magnification required for your particular camera. For example a camera with a "1/2 inch" chip works best with the 0.65x adapter. If you used it with the 1x adapter, the camera would show a zoomed-in version of the center of the image you see through the eyepieces. If you used the 0.35x adapter, you would see a "vignette" (the enire circular image you see through the eyepieces, within a black rectangle.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:
C-Mount Camera Adapter Options

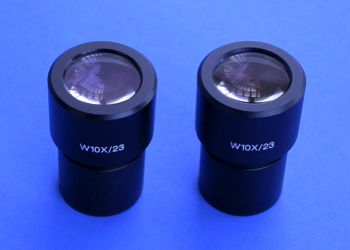

10X Eyepieces for SMT1 System (pair)

  SMT1-EP10:  $194.59
Image for 10X Eyepieces for SMT1 System (pair) coming soon!
Eyepieces are available in pairs for the SMT1 Stereomicroscope in 10X, 15X, and 20X magnifications. This item includes a matched pair of eye pieces, You may select these as part of the 3 FREE accessories you receive when ordering a SMT1 Stereomicroscope System, or you may order them separately.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

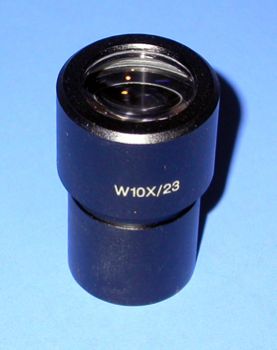

10X Micrometer Eyepiece for SMT1 System

  SMT1-EP10M:  $194.59
Image for 10X Micrometer Eyepiece for SMT1 System coming soon!
This is a single 10X eyepiece with a micrometer reticle buit in so that you can measure the sizes of specimens or position them near a marker so that someone else can look at exactly the same spot you were. You may select this item as part of the 3 FREE accessories you receive when ordering a SMT1 Stereomicroscope System, or you may order them separately.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:


15X Eyepieces for SMT1 System (pair)

  SMT1-EP15:  $194.59
Image for 15X Eyepieces for SMT1 System (pair) coming soon!
Eyepieces are available in pairs for the SMT1 Stereomicroscope in 10X, 15X, and 20X magnifications. This item includes a matched pair of eye pieces, You may select these as part of the 3 FREE accessories you receive when ordering a SMT1 Stereomicroscope System, or you may order them separately.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:

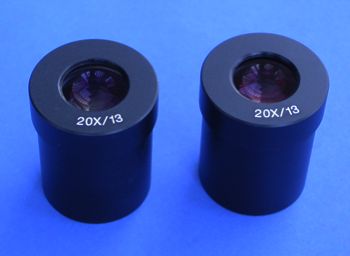

20X Eyepieces for SMT1 System (pair)

  SMT1-EP20:  $172.97
Image for 20X Eyepieces for SMT1 System (pair) coming soon!
Eyepieces are available in pairs for the SMT1 Stereomicroscope in 10X, 15X, and 20X magnifications. This item includes a matched pair of eye pieces, You may select these as part of the 3 FREE accessories you receive when ordering a SMT1 Stereomicroscope System, or you may order them separately.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:


0.5X Objective for Stereomicroscope System

  SMT1-OBJ0.5:  $162.16 - In Stock
Image for 0.5X Objective for Stereomicroscope System coming soon!
Extra objectives are availble for the SMT1 Stereomicroscope in 0.5X, 1.0X, 1.5X, and 2.0X magnifications. You may select this item as part of the 3 FREE accessories you receive when ordering a SMT1 Stereomicroscope System, or you may order them separately.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:


1.5X Objective for Stereomicroscope System

  SMT1-OBJ1.5:  $162.16
Image for 1.5X Objective for Stereomicroscope System coming soon!
Extra objectives are availble for the SMT1 Stereomicroscope in 0.5X, 1.0X, 1.5X, and 2.0X magnifications. You may select this item as part of the 3 FREE accessories you receive when ordering a SMT1 Stereomicroscope System, or you may order them separately.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:


2.0X Objective for Stereomicroscope System

  SMT1-OBJ2.0:  $162.16
Image for 2.0X Objective for Stereomicroscope System coming soon!
Extra objectives are availble for the SMT1 Stereo microscope in 0.5X, 1.0X, 1.5X, and 2.0X magnifications. You may select this item as part of the 3 FREE accessories you receive when ordering a SMT1 Stereo microscope System, or you may order them separately.


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:


Trinocular Upgrade T-mount for SMT1 Microscope

  SMT1-TOB:  $648.65
Image for Trinocular Upgrade T-mount for SMT1 Microscope coming soon!
For use with digital still cameras

Includes: Optical Bridge with Double Iris; 3.5X SLR Projection Lense; Photo Eyepiece; T-2 Thread Connecting Phototube


† These are our list prices. If you are paying with an Institutional Purchase Order or by check, you qualify for a 7.5% discount. Click here to change your payment method and see the lower prices.
Tell a Friend!
Quantity:
