Direct-Drive Micromanipulators
Single-Axis Fine Micromanipulator
M-10F:
$416.22
†
- Discontinued
Narishige's M-10F is a compact one-dimensional fine micromanipulator designed for use on the microscope stage. Attachment is done by using a 4mm bar. The model can be used in combination with many kinds of stands.
Specification
Accessories
H-7C Pipette Holder, Allen Wrench
Movement range
Fine
22mm, Full rotation of knob 500um
Dimensions/Weight
W57 x D15 x H30mm, 50g
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Thin Three-Axis Coarse/Fine Micromanipulator
M-3333:
$1,470.27
†
- Ships in 1-5 days
Narishige's M-3333 is a thin three-axis coarse/fine micromanipulator. To enable recording from multiple microelectrodes, the body of this model is made as thin as possible, with all the handles positioned in a single direction. Use of the X-Rotating X-Blocks (sold separately), makes it possible to place many microelectrodes close together without taking up too much space.It is of course possible to mount a single-axis fine movement unit on the X-axis for a more careful approach to the specimen.
*Use X-4 X-blocks and GJ-8 magnetic stand or equivalent equipment to attach this model.
*Changing the H-1 that attaches the manipulator to optional oil hydraulic micromanipulator such as MO-10 enables remote controlled X-axis fine movement.
Specification
Accessories included
H-1 Electrode Holder, Allen Wrench
Movement range
Coarse
X40mm, Y12mm, Z30mm
Fine
X7mm, Full rotation of knob: 250um Minimum graduation: 10um
Dimensions/Weight
W126 x D43 x H145mm, 340g
FAQ's
Q: What are the dimensions of the mounting bar on the M-3333? Is there a magnetic stand that can hold it effectively?
A: The mounting bar on the M-3333 is 12mm in diameter and about 25mm long. We offer magnetic stands that can accommodate a 12mm mounting bar, including the GJ-8.
However, it is generally inconvenient to directly mount the M-3333 directly to the GJ-8's upper cross-clamp, and restrict how you position the manipulator since it would be sitting directly over the magnetic base instead of out and away from it.
To remedy this issue we recommend the X-4 rotating X-block in conjunction with either the GJ-1 or preferably the GJ-8, which provides additional weight and stability.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse/Fine Joystick-Type Micromanipulator with Tilting Apparatus (Magnetic Mount)
MJ-2:
$4,594.59
†
- Discontinued
Narishige's MJ-2 is a three-axis coarse/fine micromanipulator freely fixed with a magnetic stand, with joystick control for better operability. Thanks to incorporation of a joystick, micro tools can be freely controlled on both X and Y planes. Rotating the lever changes the moving ratio, so adjustment is easy.
Three-dimensional movement is possible, with coarse movement provided on the X and Y axes, and coaxial coarse and fine movement on the Z axis. The MJ-2 is firmly and freely attached by using the magnetic stand, and the approach angles can be set via the tilting plate.
Full rotation of coarse knob 18mm Full rotation of fine knob 200um
Dimensions/Weight
W160 x D115 x H220mm, 2.9kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse/Fine Micromanipulator with Rotation Mechanism (Tilting Base)
- Special Order - Pricing Available Upon Request
Narishige's MLN-2 is a three axis coarse/fine micromanipulator with a tilting stand attachment for improved stability. In addition to main features such as a fine movement unit operating in the same direction as the microelectrode, a rotation mechanism and pivot/tilt capabilities, the MLN-330 is mounted on a tilting stand. This gives better stability than simple bar attachment. The fine movement unit is mounted on the Z-axis and enables fine adjustment of height. The tilting stand features a foldaway angle adjustment pole, so as not to interfere with operation.
*Changing the H-1 that attaches the manipulator to optional oil hydraulic micromanipulator such as MO-10 enables remote controlled X axis fine movement.
Specification
Accessories
H-1 Electrode Holder, Dedicated electrode holder, Allen Wrench, Mounting Screw, Flat Washer, Clamp Rod
Movement range
Coarse
X38mm, Y25mm, Z30mm With tension adjustment mechanism
Fine
X35mm, Full rotation of knob 250um Minimum graduation 10um
With rotation mechanism, With pivot and tilt mechanism With tilting stand, With height adjustment unit
Dimension
Main body
W110 x D90 x H170mm
Tilting stand
W130 x D150 x H45mm
Weight
4.2kg (includes tilting stand)
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
MLN-33:
$3,243.24
†
- Special Order - Pricing Available Upon Request
Narishige's MLN-33 is a three axis coarse/fine micromanipulator equipped with rotation mechanism for easy microelectrode exchange. Like the rigid-design ML-3, this model incorporates a single axis fine movement unit which moves in the same direction as the microelectrode and enables a carefully controlled approach to the specimen. A rotation mechanism is also included, making the exchange of microelectrodes easy. Handles on the X and Z axes are placed on both sides for the benefit of both left- and right-handed users, and the handles offer hardness adjustment to prevent them dropping under their own weight.
*Use GJ-2 magnetic stand or equivalent equipment to attach this model. *Changing the H-1 that attaches the manipulator to optional oil hydraulic micromanipulator such as MO-10 remote controlled X axis fine movement. *Attachment to the side of microscope stage is possible by using P-1C height adjustment plate (sold separately) and a suitable mounting adaptor.
Specification
Accessories
H-1 Electrode Holder, Dedicated electrode holder, Clamp Rod, Allen Wrench
Movement range
Coarse
X38mm, Y25mm, Z30mm With tension adjustment mechanism
Fine
X35mm, Full rotation of knob 250um Minimum graduation 10um
With rotation mechanism
Dimensions/Weight
W110 x D90 x H200mm, 1.4kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse/Fine Micromanipulator (with Tilt and Pivot Mechanism)
- Special Order - Pricing Available Upon Request
Narishige's MLN-330 is a high-class micromanipulator with both rotation and pivot/tilt mechanisms. This model features a single-axis fine movement unit which operates in the same direction as the microelectrode and allows careful approach to the specimen.
Handles on the X and Z axes are provided on both side, for the convenience of both left- and right-handed users. The handles also have hardness adjustment to prevent dropping under their own weight. In addition, a rotation mechanism is equipped for easy exchange of microelectrodes, along with pivot and tilting mechanisms to allow precise positioning.
*Use GJ-2 magnetic stand or equivalent equipment to attach this model.
*Attachment to the side of microscope stage is possible by using P-1C height adjustment plate (sold separately) and a suitable mounting adaptor.
*Changing the H-1 that attaches the manipulator to optional oil hydraulic micromanipulator such as MO-10 enables remote controlled X axis fine movement.
Specification
Accessories
H-1 Electrode Holder, Dedicated electrode holder Clamp Rod, Allen Wrench
Movement range
Coarse
X38mm, Y25mm, Z30mm With tension adjustment mechanism
Fine
X35mm, Full rotation of knob 250um Minimum graduation 10um
With rotation mechanism, With pivot and tilt mechanism
Dimensions/Weight
W110 x D90 x H195mm, 1.5kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse/Fine Compact Micromanipulator
MM-3:
$1,470.27
†
- In Stock
Narishige's MM-3 is amongst the most popular three axis coarse/fine compact micromanipulator. Its smooth drive and stable controls have made the MM-3 a classic and popular micromanipulator for decades. Single-axis fine movement in the same direction as the microelectrode or needle provides a high level of control when approaching a specimen. The three-axes of coarse movement operate via strudy rack & pinion mechanisms, enabling the microelectrode or needle to be placed near the specimen quickly.
Handles on both sides of the X- and Z-axis make this equipment suitable for both left- and right-handed operators, and a tension adjustment is also available to prevent the unit from dropping under its own weight. If used properly, this model's smoothness and stability will remain unchanged even over several decades of use.
*The MM-3 mounts via an extra-heavy-duty 12mm mounting rod (not included). For mounting next to the microscope or target, use the GJ-8 heavy-duty magnetic stand or equivalent equipment. Contact us for other options if mounting directly to a microscope stage is required for maximum stability.
*It is possible to substitute a hydraulic micromanipulator, such as the MO-10, for the standard H-13 micropipette holder when remote control of X-axis is required.
Specification
Accessories included
H-13 Electrode Holder, Clamp Rod, Allen Wrench
Movement range
Coarse
X40mm, Y20mm, Z35mm
Fine
X7mm, Full rotation of knob 250um, Minimum graduation 10um
Dimensions/Weight
W105 x D70 x H145mm, 790g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse/Fine Micromanipulator with Dual Electrode Holder and Rotation Mechanism
MMD-4:
$2,021.62
†
- Special Order
Narishige's MMD-4 is a three-axis coarse/fine micromanipulator with a dual electrode holder that enables the attachment of two microelectrodes, in addition to standard MMN-33 features such as fine manipulation on the X-axis and rotation mechanism. The two microelectrodes are placed side by side so that they approach the specimen simultaneously. Special holders are provided to position the microelectrodes closer together than would be possible using conventional holders.
*Use GJ-8 magnetic stand or equivalent equipment to attach this model.
*Attachment to the side of microscope stage is possible by using P-1B height adjustment plate (sold separately) and a suitable mounting adaptor.
X7mm, Full rotation of knob 250um Minimum graduation 10um
With rotaion mechanism
Dimensions/Weight
W105 x D85 x H175mm, 1kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's MMN-2 is a three axis coarse/fine micromanipulator with improved stability through attachment on a tilting stand. Along with such standard MMN-330 features as fine manipulation on the X-axis, rotation mechanism and pivot/tilting mechanism, the MMN-2 includes fine movement on the Z-axis for accurate vertical adjustments. In addition, it is mounted on a tilting stand, which offers more stability than conventional bar attachment. The pole for angle adjustment on the stand folds away, so as not to interfere with operation.
*Changing the H-1 that attaches the manipulator to optional oil hydraulic micromanipulator such as MO-10 enables remote controlled X axis fine movement.
Specification
Accessories
H-1 Electrode Holder, Allen Wrench
Movement range
Coarse
X40mm, Y20mm, Z35mm
Fine
X7mm, Full rotation of knob 250um Minimum graduation 10um
Z15mm, Full rotation of knob 250um
With height adjustment unit, With fine pivot and tilt mechanism, With rotation mechanism
Dimensions/Weight
W195 x D130 x H240mm, 3.4kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's MMN-330 is a miniature 3-axis coarse/fine micromanipulator with pivot and tilt mechanisms for accurate position adjustment. Like the MM-3, single-axis fine movement is equipped on this manipulator in the same direction as the microelectrode, helping to ensure a careful approach to the specimen. X-and Z-axis handles are placed on both sides, for both left- and right-handed users, and feature hardness adjustment to prevent them dropping under their own weight. Pivot and tilt mechanisms are also incorporated to enable very precise positioning adjustment.
*Use GJ-8 magnetic stand or equivalent equipment to attach this model. *Attachment to the side of microscope stage is possible by using P-1B height adjustment plate (sold separately) and a suitable mounting adaptor. *Changing the H-1 that attaches the manipulator to optional oil hydraulic micromanipulator such as MO-10 enables remote controlled X axis fine movement.
Specification
Accessories
H-1 Electrode Holder, Clamp Rod, Allen Wrench
Movement range
Coarse
X40mm, Y20mm, Z35mm
Fine
X7mm, Full rotation of knob 250um Minimum graduation 10um
Wish pivot and tilt mechanism, With rotation mechanism
Dimensions/Weight
W110 x D70 x H160mm, 1.1kg
*Products categorized as Group-2 are those used in specialized applications. Because of the limited production of a wide variety of products, Group-2 products require longer lead times than Group-1 products, and they are non-returnable.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's MMN-333 is a miniature 3-axis coarse/fine micromanipulator with pivot and tilt mechanisms for accurate position adjustment.
Like the MM-3, single-axis fine movment is equipped on this manipulator in the same direction as the microelectrode, helping to ensure a careful approach to the specimen. X- and Z-axis handles are placed on both sides, for both left- and right-handed users, and feature hardness adjustment to prevent them from dropping under their own weight. Pivot and tilt mechanisms are also incorporated to enable very precise positioning adjustment.
*Use GJ-8 magnetic stand or equivalent equipment to attach this model. *Changing the H-1 that attaches the manipulator to optional oil hydraulic micromanipulator such as MO-10 enables remote controlled X axis fine movement. *For details of using the Type A microscope mounting adaptor, please contact us.
Specification
Accessories
H-1 Electrode Holder, Clamp Rod, Allen Wrench
Movement range
Coarse
X40mm, Y20mm, Z35mm
Fine
X7mm, Full rotation of knob 250um Minimum graduation 10um
With pivot and tilt mechanism
Dimensions/Weight
W110 x D70 x H150mm, 900g
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's MMN-8 is a miniature 3-axis coarse/fine micromanipulator with a stable, space-efficient heavy weight stand. Incorporating standard MMN-330 features such as fine manipulation on the X-axis, rotation mechanism and pivot/tilting mechanism, this model also offers fine movement on the Z-axis for accurate adjustments of both height and tilting angle. Excellent stability and space efficiency are provided by mounting on a heavy weight stand.
*Changing the H-1 that attaches the manipulator to optional oil hydraulic micromanipulator such as MO-10 enables remote controlled X axis fine movement.
Specification
Accessories
H-1 Electrode Holder, Clamp Rod, Allen Wrench
Movement range
Coarse
X40mm, Y20mm, Z35mm
Fine
X7mm, Full rotation of knob 250um Minimum graduation 10um
Z15mm, Full rotation of knob 250um
With pivot and tilt mechanism, With rotaion mechanism, With vertical adjustment unit
Dimensions/Weight
W180 x D150 x H220mm, 3.4kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's MMN-9 is a miniature 3-axis coarse/fine micromanipulator with a magnetic stand that provides stability and freedom of installation. Incorporating standard MMN-330 features such as fine manipulation on the X-axis, rotation mechanism and pivot/tilting mechanism, this model also offers fine movement on the Z-axis for accurate adjustments of both height and tilting angle. The unit is mounted on a magnetic stand which provides solid, stable installation on any part of a steel plate.
*Changing the H-1 that attaches the manipulator to optional oil hydraulic micromanipulator such as MO-10 enables remote controlled X axis fine movement.
Specification
Accessories
H-1 Electrode Holder, Clamp Rod, Allen Wrench
Movement range
Coarse
X40mm, Y20mm, Z35mm
Fine
X7mm Full rotation of knob 250um Minimum graduation 10um
Z15mm, Full rotation of knob 250um
With pivot and tilt mechanisms, With rotation mechanism, With tilt mechanism, With height adjustment unit
Dimensions/Weight
W240 x D90 x H270mm, 3.3kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's MMT-5 is a three axis micromanipulator that is capable of placing three microelectrodes at adjacent positions. This model enables the attachment of three microelectrodes, in addition to standard MMN-33 features such as fine manipulation on the X-axis and rotation mechanism. The three microelectrodes are placed adjacent to each other so that they approach the specimen simultaneously. Special holders are provided to position the microelectrodes closer together than would be possible using conventional holders.
*Use GJ-8 magnetic stand or equivalent equipment to attach this model. *Attachment to the side of microscope stage is possible by using P-1B height adjustment plate (sold separately) and a suitable mounting adaptor.
Specification
Accessories
Dedicated Electrode Holders, Clamp Rod, Allen Wrench
Movement range
Coarse
X40mm, Y20mm, Z35mm
Fine
X7mm, Full rotation of knob 250um Minimum graduation 10um
With rotation mechanism
Dimensions/Weight
W105 x D105 x H175mm, 1.2kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's MN-151 is a lightweight, 3-axis mechanical micromanipulator which has coarse movements in the X, Y, and Z directions. In addition to the 3 coarse axes of movement, the MN-151 also incorporates fine, joystick-controlled movements in the X-Y plane. A knob with 5 um gradations provides fine mechanical movement in the Z axis. The MN-151 is very versatile, and can be mounted in a variety of orientations on both the left and right sides of a microscope stage. It can be used to manipulate the primary needle holder in applications such as Drosophila, C. elegans, Xenopus, and Zebrafish microinjection. It also can be used in other applications such as mammalian oocyte microinjection, where it can be used as a versatile holding-pipette manipulator and for Yeast Tetrad microdissection. *Please note that the P-1A Height Adjustment Plate (not included) is required to attach the MN-151 to Narishige's bracket systems. A needle holder, such as our MINJ-4, Narishige's HI-7, H-7 or HI-9, also needs to be purchased separately.
Specification
Accessories included
B-8B Ball Joint
Movement range
Coarse
X25mm, Y20mm, Z25mm
Fine movement: Z axis 8mm Full rotation of fine knob 500um Minimum graduation 5um
Joystick control 1:150 - 1:15 (X-Y plane movement ratio)
Dimensions/Weight
W95 x D90 x H110mm, 470g
FAQ's
Q: What are the main differences between the MN-151 and MN-153 micro manipulators?
A: MN-153 and MN-151 both have 3-axis course movement. MN-153 has an additional fine movement in the X-axis (the direction toward the sample) and no fine movement in Y or Z. MN-151 has an additional fine movement in the Z-axis (lowering down to the same plane as the sample) plus it has the joystick for fine, coordinated movement in X and Y. If you move the joystick left and right, the needle moves towards and away from the sample, respectively. If you move the joystick toward you or away from your, the needle moves toward you and away from you in the Y axis, respectively. The MN-151 makes it easier to line up the needle before injection. However, the biggest advantage is that the needle moves at a speed proportional to the speed you move the joystick, so it is easier to make the needle pierce the eggs.
Q: What are the types of mounting adapter needed to attach the MN-151 to the scope? Does the mounting adaptor attach below or behind the stage?
A: The NZ-19-2 mounts on the illumination pillar, not onto the stage. This makes it really easy to change samples, because on your scope, you can set it so that you can tilt the pillar toward the back, which will cause the micromanipulator to lift up and out of the way. The NZ-19-2 goes out to the side, NR2 goes up, and the MN-151 includes a P-1A bracket to come back toward you with a bar to mount the micromanipulator.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's MN-153 is a three axis coarse/fine direct drive micromanipulator with the capability of fine movement on the X-axis, enabling accurate linear approach to the cell with no danger of causing it any serious damage. Employment of the bar mount system provides complete installation flexibility and greatly broadens the range of possible applications.
*For attachment to the microscope, P-1A height adjustment plate (not included) and a suitable adaptor is required (standard accessories). *The ball joint that attaches the micromanipulator can be replaced by MMO-220A single-axis oil hydraulic micromanipulator (sold separately). *A needle holder, such as our MINJ-4, Narishige's HI-7, H-7 or HI-9, also needs to be purchased separately.
Specification
Accessories included
B-8B Ball Joint
Movement range
Coarse
X25mm, Y20mm, Z25mm
Fine
X8mm Full rotation of knob 250µm Minimum graduation 5µm
Dimensions/Weight
W105 x D36 x H145mm, 330g
FAQ's
Q: What are the main differences between the MN-151 and MN-153 micro manipulators?
A: MN-153 and MN-151 both have 3-axis course movement. MN-153 has an additional fine movement in the X-axis (the direction toward the sample) and no fine movement in Y or Z. MN-151 has an additional fine movement in the Z-axis (lowering down to the same plane as the sample) plus it has the joystick for fine, coordinated movement in X and Y. If you move the joystick left and right, the needle moves towards and away from the sample, respectively. If you move the joystick toward you or away from your, the needle moves toward you and away from you in the Y axis, respectively. The MN-151 makes it easier to line up the needle before injection. However, the biggest advantage is that the needle moves at a speed proportional to the speed you move the joystick, so it is easier to make the needle pierce the eggs.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Two-Axis Universal Micromanipulator (with Tilt and Pivot Mechanism)
MP-1:
$3,567.57
†
- Special Order
Narishige's MP-1 is a two axis universal "Peteruch type" manipulator. This model features coarse and fine movement units for each of two dimensions (X- and Z-axis). Pivot and tilt functions are provided for very precise operations, and the pole for angle adjustment is the folded type for setting angles on the MP-1's main body.
*GJ-10 magnetic stand (sold separately) is attached to tilting stand
Specification
Accessories
H-1 Electrode Holder, Special Screwdriver, Allen Wrench
Movement range
Coarse
X60mm, Z50mm
Fine
X4mm, Z4mm, Full rotation of knob 250um Minimum graduation 10um
With pivot and tilt mechanism
Dimensions/Weight
W150 x D130 x H175mm, 3.7kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Universal Micromanipulator incorporating a sub-stage for fine manipulations in the Y-axis (with Tilt and Pivot Mechanism)
MP-2:
$4,464.86
†
- Ships in 1-5 days
Narishige's MP-2 model combines sub-stage M-1, which allows fine movement manipulations in the Y-axis, with the MP-1 micromanipulator, which is only for manipulation in the X- and Z-axes. This allows three-dimensional movement in addition to numerous other functions, which include an easy-to-use tilting stand and pivot/tilt mechanisms.
Different models for right- and left-handed users are available. Please specify right- or left-handed model when ordering.
Specification
Accessories included
H-13 Electrode Holder Special Screwdriver Allen Wrench
Movement range
Coarse
X60mm, Z50mm
Fine
X4mm, Z4mm Full rotation of knob: 250µm Minimum graduation: 10µm
Y40mm Full rotation of knob: 500µm Minimum graduation: 10µm
Pivot and tilt mechanism
Dimensions/Weight
W150 × D130 × H210mm, 4.8kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse/Fine Micromanipulator ideal for patch clamping with solid body, stability and practicality.
MX-1:
$4,281.08
†
- Special Order
Narishige's MX-1 is a manual micromanipulator specially designed to overcome problems of drift caused by temperature change, and to minimize the jitters invariably associated with manual operation. Coarse and fine movements can be performed for each axis and fine control with 1um minimum gradations is possible. Incorporation of a rotation mechanism makes it easy to attach and detach microelectrodes.
Different models for right- and left-handed users are available. Please specify right- or left-handed model when ordering.
*Separately sold tilting stand mountable.
Specification
Accessories
H-1 Electrode Holder, Spanner, Allen Wrench, Tension Adjustment Pin
Movement range
Coarse
X35mm, Y30mm
Fine
X4mm, Y4mm Full rotation of knob 100um Minimum graduation 1um
Z coaxial handle
Coarse and fine 24mm Full rotation of knob 18mm (coarse), 200um (fine)
Dimensions/Weight
W210 x D160 x H210mm, 3.4kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse/Fine Micromanipulator with Tilting Stand for More Convenient Patch Clamping
MX-2:
$4,702.70
†
- Ships in 1-5 days
Narishige's MX-2 is a three-axis coarse/fine micromanipulator comprised of the MX-1 and an attached TM-1 tilting stand, for easier and more convenient patch clamping. Its unique structure prevents hand jitters passing to the tip of the microelectrode, and obviates concerns about drifting caused by temperature fluctuations. The tilting stand offers outstanding stability and allows the manipulator to be set at any angle for easier approach to the specimen. Furthermore, it enables the manipulator to move horizontally as well as vertically in line with the microelectrode. The stand has a magnetic base, so (as long as an iron plate is used) installation is possible even when no screw holes are provided. A rotating mechanism is also included, making the exchange of microelectrodes easy.
Different models for right- and left-handed users are available. Please specify right- or left-handed model when ordering.
Specification
Accessories included
H-13 Electrode Holder Spanner Allen Wrench Tension Adjustment Pin
Movement range
Coarse
X35mm, Y30mm
Fine
X4mm, Y4mm Full rotation of knob: 100µm Minimum graduation: 1µm
Z-axis coaxial handle
Coarse/fine movement range: 24mm Full rotation of coarse handle: 18mm Full rotation of fine handle: 200µm
Dimensions/Weight
W210 × D180 × H265mm, 6.7kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse/Fine Micromanipulator for Installation on the Stage Side of a Microscope (with Tilting, Rotation Mechanism)
- Special Order - Pricing Available Upon Request
Narishige's MX-3 is a smaller MX model for installation on the stage side of a microscope. This model includes the MX's special patch clamping features, but in a more compact, space-saving version. A tilting board (included) is attached via an adaptor, allowing the whole body to be set at different angles and enabling easy approach to the microelectrode from the side of the microscope. A rotation mechanism is also included to facilitate attachment/detachment of microelectrodes.
Different models for right- and left-handed users are available. Please specify right- or left-handed model when ordering.
*For attachment to the microscope, a suitable adaptor is required (sold separately)
Specification
Accessories
H-1 Electrode Holder, Spanner, Allen Wrench, Tension Adjustment Pin
Movement range
Coarse
X25mm, Y23mm
Fine
X3mm, Y3mm, Full rotation of knob 100um Minimum graduation 1um
Z coaxial handle
Coarse/Fine movement range 26mm Full rotation of coarse knob 18mm Full rotation of fine knob 200um
Dimensions/Weight
W160 x D117 x H180mm, 1.9kg
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse/Fine Micromanipulator and Magnetic Base for Installation on the Stage Side of a Microscope (with Tilting, Rotation Mechanism)
MX-4:
$3,891.89
†
- Ships in 1-5 days
Narishige's MX-4 model includes the MX's special patch clamping features, excellent stability, but in another more compact, space-saving version. The tilting stand has a magnetic base for unrestricted installation, and allows the whole body to be set at different angles in order to facilitate approaching your target with microelectrodes. A rotation mechanism is also included for easy attachment/detachment of microelectrodes.
Different models for right- and left-handed users are available. Please specify right- or left-handed model when ordering.
Specification
Accessories included
H-13 Electrode Holder Spanner Allen Wrench Tension Adjustment Pin
Movement range
Coarse
X25mm, Y23mm
Fine
X3mm, Y3mm Full rotation of knob: 100µm Minimum graduation: 1µm
Z-axis coaxial handle
Coarse/fine movement range: 26mm Full rotation of coarse handle: 18mm Full rotation of fine handle: 200µm
Dimensions/Weight
W143 × D106 × H265mm, 2.85kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse/Fine Manual Micromanipulator
NMN-21:
$4,108.11
†
- Ships in 1-5 days
Narishige's NMN-21 is a manually operated micromanipulator which minimizes jitter for simplicity and high performance.
Drift and electromagnetic disturbance are critical problems in patch clamping work. This mechanical micromanipulator was developed specifically for patch clamping: it does not employ a liquid hydraulic system (which is prone to drift due to temperature changes), has no springs (a common cause of mechanical drift), nor a motor (which can be a source of electrical noise). Its body is designed to absorb vibrations, so that even at high magnifications, problems of jittering are virtually non-existant. The NMN-21 is based on a drum type design and utilizes a pair of independent sliders that serve to isolate vibrations. In addition, vibrations are often caused by the operator handling the control knob, which is usually connected to a slider. To overcome this problem, the control knob of the NMN-21 is fixed independently and separate from the slider. High mass and a low center of gravity provide exceptionally steady and stable performance. The overall design is compact, so installation requires a minimum of space. With coarse and fine manipulators integrated into the compact body, this model handles a full range of required motions, from moving a microelectrode into the microscope field of view to making delicate contact with cells.
* Can be mounted directly on an optical bench-type isolation table * Can be firmly fixed to any part of a steel isolation table with the NMN-C magnetic stand (sold separately) * Can be mounted directly to microscopes via suitable adapters (sold separately) * AP-14/AP-13-3 patch clamp headstage holders can be attached via the integrated UST-2 solid universal joint
Setting Example The first photo shows a mounting adapter setting example. The second photo shows the setting example with the ITS2-N/ ITS2-O/ ITS2-Z/ ITS2-L (Microscope Isolation Systems) plus NR-12 (Rotating Micromanipulator Clamp) plus NMN-21.
X15mm, Y15mm, Z15mm Full rotation of knob: approx. 4mm
Fine
X6mm, Y6mm, Z6mm Full rotation of knob: 250um Minimum graduation: 1um
Dimensions/Weight
W110 x D170 x H105mm, 930g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's NMN-25 packs similar features to those of the NMN-21 into a thinner drive unit to facilitate multi-channel recording. The placement of all three axes' control knobs in one plane instead of three, and the adoption of a simpler holder fixing block, enables several manipulators to be installed and operated close together without interfering with each other. Installation on an isolation table makes use of multiple manipulators straightforward. Like the NMN-21, which was developed specially for patch clamping, this mechanical manipulator integrates coarse and fine movements, and employs a body design which absorbs vibrations. As a result, operation is precise, stable, and free from concerns about drift and electromagnetic disturbance.
*For attachment directly to a microscope, a suitable adaptor is required (sold separately). *The micromanipulator can be mounted directly on the isolation table, or for quickly changing samples or electrodes, use the NMN-25A dedicated slider base for NMN-25. *AP-13-3/AP-14 patch clamp headstage holders can be attached to this unit (sold separately).
Specification
Accessories included
Dedicated Universal Joint, Fixing Plate, H-12 Electrode Holder, Allen Wrench
Movement range
Coarse
X15mm, Y15mm, Z15mm Full rotation of knob: approx. 4mm
Fine
X6mm, Y6mm (total Y Course+Fine travel 15mm), Z6mm Full rotation of knob: 250µm
Dimensions/Weight
W155 X D60 X H100mm, 600g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Sliding Base - Dedicated slider for NMN-25
NMN-25A:
$616.22
†
- Ships in 5-7 days
Sliding Base
Dedicated slider for NMN-25
The NMN-25A is designed to attach the bottom of NMN-25 . It helps with quick electrode changes and high reproducibility when moving the electrode into the field of view. It can be placed with a magnet and enables easy setup on ITS or the IP iron plate.
Retracting position / Working position
Specification
Accessories included
Allen Wrench
Dimensions/Weight
W52 × D185 × H60mm, 27.5g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Micromanipulators
Kleindiek Ultra-precise Force Measurement System
FMS-LS:
$15,330.90
†
- Approx. 30 days
The Force measurement system is an accessory to the micromanipulator that allows you to perform measurements and nanoindentation. The attachment is connected to a controller which displays force feedback, and plays the resonance frequencies of your materials on a loudspeaker.
The system consists of a force sensor with integrated pipette holder, control module with preamplifier and a loudspeaker, PC software, a power supply, and an operator's handbook.
Applications
Measurement of elastic parameters of cells, Young's modulus, spring constants of MEMS and resonance frequencies
Nanoindentation
Specifications
Resolution: sub-µN
Force range: up to 10 mN
Output: +/- 10 V
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Kleindiek Ultra-precise Piezo-motor Micromanipulator System
Quantity Pricing
$17,295.14
† - Regular price.
$16,754.59
† - 2 or more.
$16,214.05
† - 3 or more.
$15,673.51
† - 4 or more.
Top Features:
Easy setup: no cumbersome brackets to fiddle around with; just place the sturdy magnetic micromanipulator onto your microscope stage and start injecting! The NanoControl box and Joypad/Joystick/Cube sit next to the microscope for easy access and ergonomic ease.
Virtually impervious to vibration
Very low drift (1 nm/min) (yes, that is 1 nanometer!)
Sub-nanometer resolution (0.25nm)
Extensive working range (100cm3)
Integrated coarse and fine movement in one unit
High operating velocity (up to 10mm/sec!)
The Kleindiek Nanotechnik MM3A Micromanipulator is a convenient, amazingly precise, and effective solution for patch clamp experiments, in-vitro fertilization (IVF / ICSI), transgenic construction, embryo manipulation, chromosomal dissection, and any types of work that require ultra-precise movement control. It features the ability to move very quickly to the desired location, while maintaining a precision of less than a nanometer! This is over 20 times more precise than any of the Narishige micromanipulators that we offer, and over 40 times more precise than Eppendorf TransferMan® NK 2, InjectMan® NI 2 and PatchMan® systems. If you want incredible precision and stability without sacrificing your working range and operating velocity, this is the micro-manipulator for you!
The MM3A can be maneuvered very easily in all axes using the joystick control. This ergonomic intuitive user interface combined with a wide range of movement speeds makes the Kleindiek Nanotechnik MM3A ideal for microinjection and micro-dissection.
The MM3A is also ideal for patch clamp experiments in the neurobiology lab. It is literally the best micromanipulator for electrophysiology because it is easy to maneuver quickly into place, offers nanometer-level precision when making the fine adjustments to contact the neuron's cell membrane, and yields a stable signal throughout the experiment because it has virtually no drift (unlike fine hydraulic micromanipulators that drift in response to subtle temperature changes).
Below is a diagram of how the controls of the MM3A work. The NanoController and the Joypad (top two devices shown in the diagram) are included with the MM3A. Under the standard factory settings, the buttons on the joypad are used to move in coarse mode. The two joysticks can control in either fine or coarse mode depending on your speed selection. Additionally, you can set a home / park position that the micromanipulator can move quickly to and from when performing multiple injections.
For easier high-precision control (such as positioning a patch clamp pipette), we recommend the Cube, a manual control device with three high-resolution vernier dials (bottom device shown on the diagram). It gives you highly responsive, intuitive, linear movement control. It connects directly to the NanoControl control electronics in addition to your choice of joystick.
The course movement range is several centimeters and, once near your target, the standard fine working range of the MM3A is 20 µm. If you want a larger fine mode working range, add the Booster option. This module for the NanoControl control electronics doubles the fine mode working range.
Specifications:
Dimensions
57.1mm x 20.4mm x 25.4mm
Weight
45g
Movement Range
Travel range in the linear axis - 12mm Travel range in the rotational axes - 240°
Operating Velocity
Up to 10mm/sec
Precision
0.25nm resolution
Accessories Included
Pipette holder for 1mm or 2mm pipettes
Magnetic mounting foot
Microscope stage adapter plate
Connectors for pipette pressurization and headstage
NanoControl control electronics with joypad and software for Windows 98/NT/ME/2K/XP.
Check out the link below for more details, and a video of the MM3A-LS in action on Kleindiek's website: http://www.nanotechnik.com/mm3a-ls.html
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Kleindiek Ultra-precise Lift-Out Shuttle
SY-LOS:
$58,372.97
†
- Approx. 30 days
The Lift-Out Shuttle is a super-fast, dedicated lift-out solution for preparing samples for ex-situ electron microscopy. It features a microgripper, a four-axis substage, and a small CCD camera at surface level that allows for fast approach.
The system is comprised of a four-axis substage mounted on an ultra-compact platform. A microgripper is mounted above the substage to facilitate the lift-out. The stage is manipulated to position the pre-cut sample under the microgripper. After that, the microgripper clamps onto the sample and holds it gently, but firmly enough that the sample can be freed from the bulk material by simply dropping the stage down and out of the way. Once isolated, the sample is brought in contact with SEM-compatible glue on a TEM grid, and cured with an ion beam.
To see a video of this process in action, please follow the link to Kleindiek's website: http://www.nanotechnik.com/lift-out-shuttle.html
The system includes control electronics, a joypad, a microgripper, and an operator's handbook.
Specifications:
Substage on load-lock compatible platform
Maximum specimen size: 30mm
Travel: X and Y = 10mm Travel: Z = 3mm Travel: R = 360°(unlimited)
Speed: up to 1mm/s
Resolution: <0.5nm
Cartesian movement
No backlash or reversal play
Simple load-lock solutions for most SEM and FIB tools
Virtually insusceptible to vibrations
Microgripper
High-resolution gripper for transport and assembly of micro-sized objects
Gripping area: (5 to 10 µm)
Resolution: 20nm
Gripping force: 5 to 5000 µN (variable)
Maximum span range: 20 to 40 µm
SemCam
Small camera at sample surface level
Allows fast approach
Includes monitor and LED illumination
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Motor (Pulse) Microdrive Micromanipulators
Stereotaxic Micromanipulator (with Digital Scale)
DSM-11:
$7,027.03
†
- Discontinued
Narishige's DSM-11 stereotaxic micromanipulator digitally displays coordinates calculated by angle in real-time.
The distance traveled by the slider is displayed digitally, improving the efficiency of experiments using stereotaxic instruments. In addition to the DSM-11, which can be used as-is in stereotaxic instruments, the DSM-11D and DSM-15D, which include digital scales on our SM-11 and SM-15 micromanipulators, are provided.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's MDO-84 is a compact, add-on, fine one-axis micromanipulator.
The MDO-84 is the pencil type micromanipulator (MO-10), a hybrid of oil-hydraulic and stepping motor that offers precise control. Used in combination with a stereotaxic manipulator, the add-on tool allows remote-control with the distance traveled shown on the digital display, as well as variable speed and precision settings- which are impossible to be performed by a manual model. Two setting modes are available: entering speed directly or entering distance and time, in the range of 0.1um/s to 500um/s. The drive unit is small and lightweight so that it can be mounted easily on different manual manipulators.
* Distance between the control unit and motor unit can be extended from original 2.9m(9.5ft) in total to 7m(28.2ft) by MD-DCE-7 (sold separately). * Palm-sized compact controller MD-OH-1 (sold separately) is available.
* The control unit controls one drive unit only; cannot control two or more drive units.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
One-Axis Motorized Stereotaxic Micromanipulator
MDS-1:
$5,891.89
†
- Ships in 1-5 days
The one-axis motorized operation makes careful work easier to achieve.
The MDS-1 One-axis motorized micromanipulator is add-on type for Z-axis direction that is suitable for experiments in rodents. Ideal for precise control that requires careful work in mouse/rat brains, such as implanting GRIN lens, inserting optical fiber and silicon probe for multi-neuron recordings. The drive unit is controlled digitally and remotely, which offers speed control and precise control: those operations are impossible to be performed by a manual model. Two setting modes are available: entering speed directly or entering distance and time. The range of drive speed is set as 0.1 um/s to 500 um/s. The drive unit accommodates to hold a shaft with 3mm to 8mm O.D.
*The distance between the control unit and drive unit can be extended from the original 1.5m (4.9ft) in total to 7m(28.2ft) by MD-DCE-7 (sold separately).
*Palm-sized compact controller MD-OH-1 (sold separately) is also available.
Specifications:
Accessories included
Connecting bar Connecting cable (1.5m) AC power cord (2.5m) Dedicated screw (for attaching manipulator) Hex wrench x 2 Spare fuse (inside of fuse holder)
Drive Source
5-phase Stepping Motor
Movement range
20mm
Setting Range
Speed range
0.1 um/s ~ 2,500 um/s (0.1 um/s increment)
Distance range
1 um ~ 20,000 um (1 um increment)
Time range
1s ~ 60min (0.1s increment)
Working voltage
AC100V ~ 240V, 50/60Hz
Power consumption
15W
Dimensions/Weight
Drive unit
W56 x D60 x H122mm, 0.28kg
Control unit
W180 x D260 x H95mm, 2.5kg
*The control unit controls one drive unit only; cannot control two or more drive units.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Oil Hydraulic Micromanipulators
Three-Axis Oil Hydraulic Fine Micromanipulator (Vernier Type)
MMO-203:
$6,216.22
†
- Ships in 1-5 days
Narishige's MMO-203 is a three axis oil hydraulic fine micromanipulator with a large handle offering excellent linearity.
This micromanipulator's hydraulic drive system can be remote controlled, and provides smooth, vibration-free movements. As successor to the vernier type, it features a big cylinder control unit which enables very fine operation. Another key feature is high reproduction of the linear position. Compared with the currently popular joystick method, this control unit has a long record of use among discerning customers because of its simple design and outstanding cost-efficiency. For microinjection systems, this model is recommended for use on the cell holding side, in combination with a joystick type manipulator.
*For attachment to the microscope, a coarse manipulator and suitable adaptor are required (sold separately). *Select Type B adaptor for mounting this manipulator in combination with MMN-1 coarse manipulator. *Changing the universal joint that attaches the micromanipulator to such double pipette holder as HDO-20 (sold separately) enables performance of embryo biopsy. *Changing the universal joint that attaches the micromanipulator to MMO-220A single-axis oil hydraulic micromanipulator enables four-dimensional remote controlled movement.
X10mm, Y10mm, Z10mm Full rotation of knob 250um Minimum graduation 1um
Dimensions/Weight
Control unit
W115 x D115 x H132mm, 1.6kg
Drive unit
W70 x D50 x H80mm, 0.15kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Single-Axis Oil Hydraulic Fine Micromanipulator (Vernier Type)
MMO-220A:
$2,864.86
†
- Ships in 1-5 days
Narishige's MMO-220A is a one-dimensional oil hydraulic micromanipulator that adds fine movement capability in the same direction as the pipette.
When using this unit to insert a pipette into the cell, operators can make further movement along the axis of the pipette, which minimizes the chance of damaging the cell. This single-axis oil hydraulic micromanipulator is typically use as an add-on manipulator. The compact drive unit is installed on the tip of a ball joint, adding the same high precision as a general oil hydraulic micromanipulator. The MMO-220A uses a standard drum and can be combined with any kind of three-dimensional manipulator, including lower-cost mechanical units.
Compare to the MMO-220C that features a small handle with magnetic mount that can be attached near a 3-axis oil hydraulic joystick or other micromanipulator.
Specification
Model
MMO-220A
MMO-220C
Movement range
Fine
10mm Full rotation of knob 250um Minimum graduation 1um
10mm Full rotation of knob 250um Minimum graduation 10um
Dimensions/Weight
Control unit
W70 x D115 x H100mm, 1.15kg
W55 x D45 x H80mm, 140g
Drive unit
W45 x D20 x H35mm, 90g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Single-Axis Oil Hydraulic Fine Micromanipulator
MMO-220C:
$2,594.59
†
- Ships in 1-5 days
Single-Axis Oil Hydraulic Micromanipulator
Narishige's MMO-220C is a one-dimensional oil hydraulic micromanipulator that adds fine movement capability in the same direction as the pipette.
When using this unit to insert a pipette into the cell, you can make movement along the axis of the pipette, which minimizes the chance of damaging the cell. This single-axis oil hydraulic micromanipulator is typically used as an add-on micromanipulator to one that handles the other 3 axes. The MMO-220C comes with its own magnetic mount included so that the control knob can be positioned within easy reach and is an update to the discontinued MMO-220B.
* Compare below with the MMO-220A that features a high-precision vernier dial.
10mm Full rotation of knob 250um Minimum graduation 1um
10mm Full rotation of knob 250um Minimum graduation 10um
Dimensions/Weight
Control unit
W70×D115×H100mm, 1.15kg
W55×D45×H80mm, 140g
Drive unit
W45×D20×H35mm, 90g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
The MMO-4 micromanipulator features an oil hydraulic joystick that allows for smooth three-dimensional movement with a single control. This updated model works from both the left and right side of the sample without any conversion. Improved joystick movement is the key to greater control, and it reduces the risk of unwanted drift as well. The ergonomic hanging joystick enables users to keep their arms and hands on the table in a natural posture for comfortable prolonged use. An improved universal joint (UT-10) is also included, for stable, accurate attachment of a pipette holder and easy setting of pipette angle.
*For attachment to the microscope, a coarse manipulator and suitable mounting adaptor are required (sold separately). *Select Type B adaptor for mounting this manipulator in combination with MMN-1 coarse manipulator. *Changing the universal joint included with the micromanipulator to the double pipette holder HD-21 (sold separately) enables performance of embryo biopsy. *Changing the universal joint that attaches the micromanipulator to MMO-220A/MMO-220B single-axis oil hydraulic micromanipulator enables four-dimensional remote controlled movement. *In combination with the return mechanism UT-R (sold separately), MMO-4 enables mechanisms of retracting the pipette. Specification
Accessories included
IP Iron Plate, UT-10 Universal Joint (with Angle Gauge)
Movement range
Fine
X10mm, Y10mm, Z10mm Full rotation of knob: 250um Minimum graduation: 2um
Joystick (for maximum movement in X-Y plane) 2mm
Dimensions/Weight
Control unit
W177 x D70 x H178mm, 1.76kg
Drive unit
W70 x D40 x H87mm, 168g
Hydraulic Tube Length
0.9m
FAQ's
Q: What is the main advantage of the MMO-4 hydraulic micromanipulator over the MN-151 mechanical micro manipulator?
A: With a mechanical micromanipulator like the MN-151, the user touches the actual micromanipulator to move the joystick. This can introduce some vibration and some torque during movement. With a hydraulic micromanipulator like the MMO-4, the joystick is separated from the micromanipulator by the hydraulic tubes, so the user doesn't touch it, and so the movement is smooth and well isolated.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Single-Axis Oil Hydraulic Fine Micromanipulator
MO-10:
$2,540.54
†
- Ships in 1-5 days
Narishige's MO-10 is a pencil type oil hydraulic manipulator designed for use with a three-dimensional manipulator. Instead of employing a large cylinder with speed reduction gear, like the MO-8, its control unit uses a general drum type. Space-efficient installation and economical price are two notable advantages.
Specification
Accessory included
Dedicated electrode holder
Movement range
Fine
10mm, Full rotation of knob 500um Minimum graduation 2um
Dimensions/Weight
Control unit
W70 x D115 x H100mm, 1.15kg
Drive unit
W30 x D20 x H125mm, 50g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Single-Axis Oil Hydraulic Fine Micromanipulator and Three-axis Coarse Micromanipulator
MO-150:
$3,513.51
†
- Discontinued
Narishige's MO-150 is an oil hydraulic single-axis fine micromanipulator capable of approaching the specimen without vibration. Based on the M-152, this version adds the capability of oil hydraulic fine movement on the X-axis, enabling accurate, vibration-free linear approach to the cell with no danger of causing it any serious damage. Employment of the bar mount system provides complete installation flexibility and greatly broadens the range of possible applications.
*For attachment to the microscope, P-1A height adjustment plate (sold separately) and a suitable adaptor is required (standard accessories). *Attached universal joint can be replaced by the MMO-220A single-axis oil hydraulic micromanipulator (sold separately).
X10mm, Full rotation of knob 500um Minimum graduation 2um
Dimensions/Weight
Control unit
W70 x D115 x H100mm, 1.15kg
Driving unit
W94 x D36 x H155mm, 280g
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Joystick Type Oil Hydraulic Fine Micromanipulator
MO-202U:
$7,675.68
†
- In Stock
Narishige's MO-202U is a oil hydraulic joystick manipulator capable of a smooth three-dimensional operation using a single lever. Since that time, it has been widely used by many customers, whose requests for restoration of its former shape and other discontinued features are met in this latest model. Those features include the tall upright joystick control section with plastic hand-rest and full, 500µm rotation movement. In addition, a slimmer driving unit and attachment of the UT-2 as an accessory make this model easier than ever to use.
*For attachment to the microscope, a coarse manipulator and suitable adaptor are required (sold separately). *Select Type B adaptor for mounting this manipulator in combination with MMN-1 coarse manipulator. *Changing the universal joint that attaches the micromanipulator to such double pipette holder as HDO-20 (sold separately) enables performance of embryo biopsy. *Changing the universal joint that attaches the micromanipulator to MMO-220A/MMO-220B single-axis oil hydraulic micromanipulator enables four-dimensional remote controlled movement.
Specification
Accessories included
UT-2 Universal Joint, CF-3 Tube Fixture, Allen Wrench
Movement range
Fine
X10mm, Y10mm, Z10mm Full rotation of knob: 500um Minimum graduation: 5um
Joystick (for maximum movement in X-Y plane): 2mm
Dimensions/Weight
Control unit
W135 x D135 x H210mm, 1.85kg
Drive unit
W40 x D39 x H82mm, 0.17kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Stereotaxic Accessories
Stereotaxic Manipulator
SM-12:
$1,351.35
†
- Ships in 1-5 days
Narishige's SM-12 is very simple, economical manipulator for stereotaxic instruments and can be mounted by various methods. A coarse movement unit is provided for the most important movement (vertical), while position adjustment for the others can be done with sliders. Rotation mechanisms are employed for the vertical and horizontal directions, enabling easy approach from any required tilting angle.
Specification
Accessories included
Screw Allen Wrench
Movement range
Coarse
Z65mm
Dimensions/Weight
W140 × D47 × H220mm, 900g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Direction Changing Bar for SM-12
SM-12H:
$261.62
†
- Special Order
Narishige's SM-12H is a direction changing bar attached to the SM-12 , this bar is used to change the manipulator's direction through 90 degrees and to adjust the tilting angle of the SM-12 .
*SM-12 sold separately
Specification
Height/Weight
H130mm, 150g
*This is a Narishige "Group-2" special order item. Because it has to be custom-made for you, there is usually a 4-week lead time and it is non-cancellable and non-returnable once ordered. Prices for Group-2 items change often, and, like all of our website prices are subject to change without notice, so always double-check with us prior to placing an order for this item.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Attachment for SMM series to affix syringe or holder
SMM-A:
$410.81
†
- Ships in 5-10 days
Attachment for SMM series to affix syringe or injection holder.
This attachment is intended to hold and move an additional tool with a shaft with 8mm O.D. With this attachment, a micromanipulator from the SMM series can hold two holders at a time. The attachment is affixed with screws in the screw holes on the side of X-axis unit of the SMM series; then the additional tool can be slid its position one end to the other. When a tool from the SMM series is tilted or used with IMS-20, this attachment helps to position the tip of the holder and keeps it from situating beyond the median line.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Holder for using silicon neural probes with SMM series
SMM-HA:
$356.76
†
- Ships in 5-10 days
Holder for Neural Probes
Holder made for using silicon probes with SMM series products
This holder is intended to hold a silicon probe on SMM series products. The silicon probe can be affixed close to the holder shaft to prevent interference around the probe. The holding section is made with resin - thus it does not conduct electricity when in contact with a substrate. (The photograph above shows the holding of a silicon probe by NeuroNexus.)
Thickness: 2mm or less Width: within 2.5 ~ 5mm Length: 12mm or longer
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Holder for using silicon neural probes with SMM series
SMM-HB:
$356.76
†
- Ships in 5-10 days
SMM-HB Holder for Neural Probes
Holder made for using silicon probes with SMM series
This holder is intended to hold a silicon probe on SMM series products. A silicon probe can be affixed with greater distance away from the holder shaft when it is necessary (compared to the SMM-HA that is affixed very close to the shaft.) The holding block is made with resin - thus it does not conduct electricity when in contact with a substrate. The holding section can be detached from the shaft and reversed in orientation (Left-right). (The photograph above shows the holding of a silicon probe by NeuroNexus.)
Thickness: 2mm or less Width: within 2.5 ~ 5mm Length: 12mm or longer
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Cannula holder for SMM series
SMM-HC:
$356.76
†
- Ships in 5-10 days
Cannula Holder for SMM series
This holder is intended to hold a cannula within 3.4mm and 3.5mm O.D. on SMM series. The upper tip of the cannula is visible when affixed - thus it is easy to confirm proper insertion of the cannula. The holding section can be detached from the shaft and changed in orientation (Left-right). Comparatively to SHC-1, the products differ in the diameter of the shaft and the way the cannula is held. (SMM-HC has the shaft with 8mm O.D., and the cannula won't be affixed from the top without covering the upper side of cannula - thus a T-shaped cannula can be affixed as well). The above photo shows the setting example for SR-5M-HT+ SM-100 + SMM-HC.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.

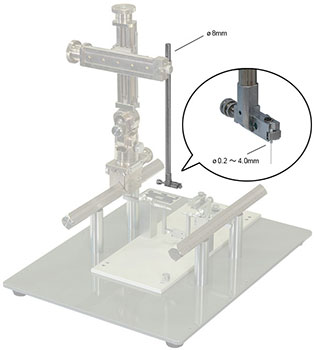

Multiuse holder for SMM series to affix syringe or injector
SMM-HD:
$410.81
†
- Ships in 5-10 days
Multiuse holder for SMM series to affix a syringe or injection holder
This holder is intended to hold instruments measuring between 4mm O.D. to 10mm O.D., which allows for the MO-10 and MO-82 to be affixed at a low-reach position on SMM series products without using a long holder. The HI-7 and HI-9 microinjection holders (4mm O.D.) and a glass syringe (10mm O.D. or less) can be affixed directly onto this holder as well. The holding section can be detached from the shaft and changed in orientation (Left-right). The above photo illustrates a setting example of the SR-5M-HT + SMM-100 + SMM-HD + MO-10.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Stereotaxic Instruments
Stereotaxic Micromanipulator
SM-11:
$4,216.22
†
- Special Order
Narishige's SM-11 is the most popular (and versatile) micromanipulator for stereotaxic instruments because it can be attached to any of our AP frame bars and provides multi-axis movement. A coarse movement unit with a long working range is attached to the Z-axis, in addition to the fine movement adjustments included for each individual axis. These fine movement units have scales with minimum increments of 10µm (i.e. the total of a single rotation, 500µm, divided into 50 gradations), so that precise adjustments of 10µm are possible. In addition, the Z-axis fine movement unit has a sliding mechanism that enables approximate positioning of the X-axis. A rotation mechanism is provided for each of the X-Y, X-Z and Y-Z planes that allows approach from any required angle. Easy-to-use scales are provided wherever necessary, permitting for operations following a brain chart. Overall, this micromanipulator is simple to use and meets a wide variety of applications.
Specifications:
Accessories included
Dedicated Electrode Holder (for ±1mm) Trim Screw
Movement range
Coarse
Z60mm
Fine
X30mm, Y30mm, Z30mm Full rotation of knob: 500µm Minimum graduation: 10µm
Dimensions/Weight
W150 × D104 × H225mm, 1.75kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Stereotaxic Micromanipulator
SMM-100:
$4,702.70
†
- Ships in 1-5 days
The SMM-100 Stereotaxic Micromanipulator is made for use in animal experiments utilizing traditional methods of acute/chronic experiments or electro-physiological recording, as well as for newly developed methods of multi-photostimulations and silicon probes. SMM-100 is equipped with a Y-axis control knob which makes the fine adjustment in the AP direction possible. The upper body of SMM-100 is switchable in either AP or ML direction when using it with tilting angle.
Hex Wrenches (2mm and 2.5mm) Dedicated electrode holder (with attachment and screw) Screw for grounding Washers for grounding (Bellville washer and flat washer)
Movement range
X80mm, Y20mm, Z80mm Full rotation of knob 1mm Minimum graduation 10µm
Dimensions/Weight
W85 × D162 × H256mm, 1.84kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Stereotaxic Micromanipulator
SMM-100B:
$4,108.11
†
- Ships in 1-5 days
The SMM-100B Stereotaxic Micromanipulator is made for use in animal experiments using traditional methods of acute/chronic experiments or electro-physiological recording, as well as for newly developed methods of multi-photostimulations and silicon probes. It is designed without a Y-axis control knob so that two or more micromanipulators can be set close together. The upper body of SMM-100B is switchable in either AP or ML directions when using it with tilting angle.
Hex Wrenches (2mm and 2.5mm) Dedicated electrode holder (with attachment and screw) Screw for grounding Washers for grounding (Bellville washer and flat washer)
Movement range
X80mm, Z80mm Full rotation of knob 1mm Minimum graduation 10µm
Dimensions/Weight
W49 × D162 × H241mm, 1.56kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Stereotaxic Micromanipulator
SMM-100C:
$4,702.70
†
- Ships in 1-5 days
The SMM-100C is a new coarse manipulator for stereotaxic instruments focusing on driving outside the animal's brain. The driving by Z-axis control knob: approximately 4mm per rotation makes faster adjustments for leveling bregma and lambda, and faster retracting/returning from the dura mater, which will improve efficiency of the experiment. For operations inside the brain, One-axis Motorized Stereotaxic Micromanipulator MDS-1 and hydraulic manipulator can be added optionally. The X-axis is equipped with a coarse control knob, which is the same as the Z-axis. The Y-axis (anterior/ posterior direction) is equipped with a fine control knob. The upper body of SMM-100C is switchable in either AP or ML direction when using it with tilting angle.
* The minimum graduation of the X and Z-axis is 100µm. This manipulator is recommended to be used in combination with a fine micromanipulator (MDS-1, etc).
Set-up example
*Stereotaxic instrument, GM-4, MDS-1, and SMM-HA, the silicon probe in the photo above are not included.
Set-up example with SMM-A
SMM-A is recommended for experiments: tilting in the ML direction. When the manipulator SMM-100C/200C is tilted in the ML direction, the end of the holder (electrode tip) may be far off from animal's head. The attachment SMM-A is designed to attach a holder on the side of manipulator, so it enables the holder position without operating the X-axis. To this end, the holder (electrode tip) can be set to the animal's head while maintaining driving distance of the X-axis. *The set-up example above: motorized MDS-1 and IMS-30 on SMM-100C installed with SMM-A.
Hex Wrenches (2mm and 2.5mm) Dedicated electrode holder (with attachment and screw) Screw for grounding Washers for grounding (Bellville washer and flat washer)
Movement range
X80mm, Z80mm Full rotation of knob 4.2mm Minimum graduation 100µm(Vernier scale) Y20mm, Full rotation of knob 1mm, Minimum graduation 10µm
Dimensions/Weight
W85 × D162 × H256mm, 1.75kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Stereotaxic Micromanipulator
SMM-200:
$5,405.41
†
- Ships in 5-10 days
Simultaneous Dual Angles: AP and ML directions
The SMM-200 Stereotaxic Micromanipulator is made for use in animal experiments with traditional methods of acute/chronic experiments or electro-physiological recording, as well as for newly developed methods of multi-photostimulations and silicon probes. The SMM-200 is equipped with a Y-axis control knob which makes the fine adjustment in the AP direction possible. The upper body of SMM-200 can be tilted with dual angles: AP and ML directions simultaneously.
Drill installed on SMM-200
* When the compact drill for Stereotaxic Instruments, SD-101 is installed with the SMM series, SM-15C attachment is required (sold separately).
Hex Wrenches (2mm and 2.5mm) Dedicated electrode holder (with attachment and screw) Screw for grounding Washers for grounding (Bellville washer and flat washer)
Movement range
X80mm, Y20mm, Z80mm Full rotation of knob 1mm Minimum graduation 10µm
Dimensions/Weight
W85 × D162 × H286mm, 2.09kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Stereotaxic Micromanipulator
SMM-200B:
$5,405.41
†
- Ships in 5-10 days
The SMM-200B Stereotaxic Micromanipulator is made for use in animal experiments with traditional methods of acute/chronic experiments or electro-physiological recording, as well as for newly developed methods of multi-photostimulations and silicon probes. It is designed without a Y-axis control knob so that two or more micromanipulators can be set close together. The upper body of SMM-200B can be tilted with dual angles: AP and ML directions simultaneously.
Hex Wrenches (2mm and 2.5mm) Dedicated electrode holder (with attachment and screw) Screw for grounding Washers for grounding (Bellville washer and flat washer)
Movement range
X80mm, Z80mm Full rotation of knob 1mm Minimum graduation 10µm
Dimensions/Weight
W49 × D162 × H271mm, 1.77kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Stereotaxic Micromanipulator
SMM-200C:
$5,405.41
†
- Ships in 5-10 days
The SMM-200C is a new coarse manipulator for stereotaxic instruments focusing on driving outside the animal's brain. The driving by Z-axis control knob: approximately 4mm per rotation makes faster adjustments for leveling bregma and lambda, and faster retracting/returning from the dura mater, which will improve efficiency of the experiment. For operations inside the brain, One-axis Motorized Stereotaxic Micromanipulator MDS-1 and hydraulic manipulator can be added optionally. The X-axis is equipped with a coarse control knob, which is the same as the Z-axis. The Y-axis (anterior/ posterior direction) is equipped with a fine control knob. The upper body of SMM-200C can be tilted with dual angles: AP and ML directions simultaneously.
* The minimum graduation of the X and Z-axis is 100µm. This manipulator is recommended to be used in combination with a fine micromanipulator (MDS-1, etc).
Set-up example
*Stereotaxic instrument, GM-4, MDS-1, and SMM-HA, the silicon probe in the photo above are not included.
Set-up example with SMM-A
SMM-A is recommended for experiments: tilting in the ML direction. When the manipulator SMM-100C/200C is tilted in the ML direction, the end of the holder (electrode tip) may be far off from animal's head. The attachment SMM-A is designed to attach a holder on the side of manipulator, so it enables the holder position without operating the X-axis. To this end, the holder (electrode tip) can be set to the animal's head while maintaining driving distance of the X-axis. *The set-up example above: motorized MDS-1 and IMS-30 on SMM-200C installed with SMM-A.
Hex Wrenches (2mm and 2.5mm) Dedicated electrode holder (with attachment and screw) Screw for grounding Washers for grounding (Bellville washer and flat washer)
Movement range
X80mm, Z80mm Full rotation of knob 4.2mm Minimum graduation 100µm(Vernier scale) Y20mm, Full rotation of knob 1mm, Minimum graduation 10µm
Dimensions/Weight
W85 × D162 × H286mm, 2.0kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Water Hydraulic Micromanipulators
Three-Axis Water Hydraulic Fine Micromanipulator (1:1 System)
MHW-103:
$6,486.49
†
- Ships in 1-5 days
Narishige's MHW-103 is a liquid hydraulic micromanipulators developed for patch clamping generally use the 1:5 cartridge system to solve the problem of drifting. It has a wide driving range while keeping drift to a minimum. Since this can limit their driving range to as little as 2mm, customers who want a wide driving range are recommended to choose this product, which uses a 1:1 cartridge. The drum type control unit has a large handle for precise operation and high linear repeatability. The water hydraulic system is less prone to drift caused by changes in temperature than an oil hydraulic system, and is thus more suitable for patch clamping. A coarse manipulator is not mounted, so one must be purchased separately.
*For attachment to the microscope, a coarse manipulator and suitable adaptor are required (sold separately). *Select Type B adaptor for mounting this manipulator in combination with MMN-1 coarse manipulator.
X10mm, Y10mm, Z10mm Full rotation of knob 250µm Minimum graduation 1µm
Dimensions/Weight
Control unit
W115 × D115 × H132mm, 1.6kg
Drive unit
W70 × D50 × H80mm, 150g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Water Hydraulic Fine Micromanipulator
MHW-3:
$7,945.95
†
- Ships in 1-5 days
Narishige's MHW-3 is a water hydraulic micromanipulator specially designed for patch clamping. Its water hydraulic system has a lower coefficient of expansion than an oil hydraulic system, and allows precise movement. A 1:5 cartridge is incorporated to minimize drifting. The large, rigid driving unit enables fine movements and coarse manipulations and a sturdy ball joint is also used. Installation is made more rigid by securing attachments to the bar. The drum type control unit has a large handle for precise operation and high linear repeatability. Overall, design considerations are focused on precision movement and stability over long periods of time. This model set the standards for subsequent models of micromanipulators for patch clamping.
*For attachment to the microscope, a suitable adaptor is required (sold separately). *The micromanipulator can be mounted directly on the isolation table. *This model can be firmly fixed to any part of the isolation table with GJ-12 thin-type magnetic stand (sold separately). *AP-12A/AP-12L/AP-12N/AP-13-2 patch clamp headstage holders can be attached on the B-9 ball joint, incorporated in the manipulator . *Combining the ball joint that attaches the micromanipulator with MHW-4 single-axis water hydraulic micromanipulator enables four-dimensional remote controlled movement.
X30mm, Y30mm, Z30mm Full rotation of knob: approx. 4mm
Fine
X2mm, Y2mm, Z2mm Full rotation of knob: 50um Minimum graduation: 0.2um
Dimensions/Weight
Control unit
W115 x D115 x H132mm, 1.6kg
Drive unit
W155 x D155 x H100mm, 900g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Single-Axis Water Hydraulic Fine Micromanipulator (For Patch Clamp Work)
MHW-4:
$2,378.38
†
- Ships in 1-5 days
Narishige's MHW-4 is an add-on type single-axis water hydraulic micromanipulator, attachable to ball joint B-9.
Made for use with the MHW-3 in patch clamping applications, it offers excellent stability with minimal drifting.
2mm Full rotation of knob: 50um Minimum graduation: 0.2um
Dimensions/Weight
Control unit
W70 x D115 x H100mm, 1.15kg
Drive unit
W42 x D28 x H41mm, 60g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Single-Axis Water Hydraulic Fine Micromanipulator (For Patch Clamp Work) with wide movement 1:1
MHW-4-1:
$2,594.59
†
- Ships in 1-5 days
Narishige's MHW-4 is an add-on type single-axis water hydraulic micromanipulator, attachable to ball joint B-9.
This unit has a movement range type 1:1, for the 5:1 movement please refer to MHW-4.
2mm Full rotation of knob: 50um Minimum graduation: 0.2um
Dimensions/Weight
Control unit
W70 x D115 x H100mm, 1.15kg
Drive unit
W42 x D28 x H41mm, 60g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Micromanipulator with excellent microinjection performance under low magnifications. (Single-Axis Water Hydraulic System)
MWS-1A:
$3,243.24
†
- Discontinued
Narishige's MWS-1A is intended for performing microinjections under low magnifications using a stereomicroscope. This unit features a single-axis water hydraulic micromanipulator mounted on the MWS-1. Employment of a 1:1 cartridge system produces a movement range as wide as 10mm, so that the MWS-1A can be used for a wide variety of applications other than microinjection.
*For attachment to the microscope, a suitable adaptor is required (sold separately). *AP-14/AP-13-3 patch clamp headstage holders can be attached (sold separately)
Specification
Accessories included
H-1 Electrode Holder, Allen Wrench
Movement range
Coarse
X15mm, Y15mm, Z15mm
Fine
T10mm, Full rotation of knob 250um, Minimum graduation 1um
Dimensions/Weight
Control unit
W70 x D115 x H100mm, 1.15kg
Drive unit
W105 x D115 x H110mm, 370g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Micromanipulator ideal for patch clamping/blind patching using stereo microscopes. (Single-Axis Water Hydraulic System)
MWS-1B:
$3,351.35
†
- Discontinued
Narishige's MWS-1B is intended for patch clamping and blind patching applications under low magnifications using a stereo microscope. This combination presents a single-axis water hydraulic micromanipulator with a 1:5 cartridge system, mounted on the MWS-1. This provides precise movement toward the target area and good stability with minimal drift, all at an economical price.
*For attachment to the microscope, a suitable adaptor is required (sold separately). *AP-14/AP-13-3 patch clamp headstage holders can be attached (sold separately).
Specification
Accessories included
H-1 Electrode Holder, Allen Wrench
Movement range
Coarse
X15mm, Y15mm, Z15mm
Fine
T2mm, Full rotation of knob 50um, Minimum graduation 0.2um
Dimensions/Weight
Control unit
W70 x D115 x H100mm, 1.15kg
Drive unit
W105 x D115 x H110mm, 400g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Coarse Mechanical Micromanipulator with Fine Water Hydraulic Z-Axis Control. Ideal for experiments under low magnification
MWS-31:
$5,135.14
†
- Ships in 1-5 days
Narishige's MWS-31 is a one-axis water hydraulic micromanipulator combined with a three-dimensional manual coarse manipulator for patch clamping applications under low magnifications, such as when using a stereo microscope. Even at low magnifications, vibration is a critical problem, so a large and rigid manual manipulator is used to prevent it. The rotation mechanism makes exchanging pipettes easier, and the water hydraulic 1:5 cartridge system enables more stable and precise operation. An angle adjustment mechanism is equipped on the fine movement section so that an angle can be added for the fine movement section only, while coarse section retains its vertical position. This allows the manipulator angle to be changed between horizontal and vertical while the manipulator itself remains firmly fixed in position.
X38mm, Y25mm, Z30mm With tension adjustment mechanism
Fine
2mm Full rotation of knob 50µm Minimum graduation 0.2µm
Dimensions/Weight
Control unit
W70 × D115 × H100mm, 1.15kg
Drive unit
W190 × D145 × H200mm, 1.15kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Independently usable one-axis water hydraulic micromanipulator for stereomicroscopes (Magnetic Mount)
MWS-32:
$5,459.46
†
- Ships in 1-5 days
Narishige's MWS-32 combines a magnetic stand with the MWS-31, so that it can be used independently. Direct attachment to the magnetic stand provides enhanced stability required for applications with stereo microscopes. Like MWS-31, MWS-32 also has a water hydraulic 1:5 cartridge system, angle adjustment mechanism for firm fixing, and a rigid manual coarse manipulator. A unique feature of MWS-32 is that the manipulator is fixed directly to a rigid magnetic stand, thereby making the vertical adjustments more stable. This integration of the magnetic stand allows independent use in a variety of applications by freeing the manipulator from a stereomicroscope.
X38mm, Y25mm, Z30mm With tension adjustment mechanism
Fine
2mm Full rotation of knob 50µm Minimum graduation 0.2µm
Dimensions/Weight
Control unit
W70 × D115 × H100mm, 1.15kg
Drive unit
W200 × D100 × H240mm, 2.45kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's UM-1FC is a 10mm bar-mount type one-dimensional coarse and fine micromanipulator that features a compact design and can be used in many different ways. UM-1FC can be attached to a 10mm bar of GJ-1 (Magnetic Stand) sold separately.
Specification
Movement range
Coarse
X14mm
Fine
X6mm, Full rotation of knob 250um
Dimensions/Weight
W80 x D23 x H60mm, 92g
* In addition, UM-1C (for coarse movement only) / UM-1F (for fine movement only) are available. Choose an appropriate model for the intended purpose.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Micromanipulator
UM-1PF:
$486.49
†
- Special Order
Narishige's UM-1PF, used in combination with UM/UMM series three-dimensional manipulators, is a plate-mount type micromanipulator that enables one-dimensional fine movement angled in the same direction as the pipette.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Manipulator
UM-1PFC:
$756.76
†
- Ships in 1-5 days
Narishige's UM-1PFC, used in combination with UM/UMM series three-dimensional manipulators, is a plate-mount type manipulator that enables one-dimensional coarse movement angled in the same direction as the pipette.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
This three-dimensional coarse plus fine micromanipulator enables fine movement operation in the same direction as the pipette, making it easier to approach the specimen. A ø6mm bar (URC-1) is included with the manipulator. Choose a suitable stand, sold separately.
Choose either the 6mm USM-6 stand, plus X-Block UX-6-6 or Choose the 10mm USM-10 stand, plus X-Block UX-6-10. Add the UPN-B ball joint for additional freedom to angle your ø4mm holder such as MINJ-4, UPN-1, or UPN-C.
Specifications
Accessories
URC-1 mounting rod
Movement range
Coarse
X9mm, Y14mm, Z14mm
Fine
X5mm, Full rotation of knob 500µm
Dimensions/Weight
W73 x D18 x H62mm, 91g
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's UM-3FC three-dimensional coarse and fine micromanipulator features a coaxial coarse and fine movement mechanism on each axis, and a slim, space-saving design. A rotation mechanism is mounted, making it easy to switch between right- and left-hand use, and to exchange pipettes. The UM-3FC is attached to a 10mm bar and offers compact design and sufficient movement range.
Specification
Movement range
Coarse
X14mm, Y14mm, Z14mm
Fine
X6mm, Y6mm, Z6mm Full rotation of knob 250um
With rotation mechanism
Dimensions/Weight
W111 x D77 x H138mm, 270g
* As a longer working distance model, UMM-3FC (12mm bar-mount type) is available. * For coarse movement only, UMM-3C / UM-3C are available. Choose an appropriate model for the intended purpose.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's UMM-3FC three-axis coarse/fine mechanical micromanipulator features a coaxial coarse and fine movement mechanism on each axis, and a slim, space-saving design. A rotation mechanism is mounted, making it easy to switch between right- and left-hand use, and to exchange pipettes. The UMM-3FC is attached to a 12mm bar and offers compact design and greater movement range than the UM-3FC.
Specification
g
Movement range
Coarse
X24mm, Y24mm, Z24mm
Fine
X6mm, Y6mm, Z6mm Full rotation of knob 250um
With rotation mechanism
Dimensions/Weight
W143 x D92 x H158mm, 510g
* As a shorter working distance model, UM-3FC (10mm bar-mount type) is available. * For coarse movement only, UMM-3C / UM-3C are available. Choose an appropriate model for the intended purpose.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Three-Axis Compact Fine Mechanical Micromanipulator
US-3F:
$702.70
†
- Ships in 1-5 days
Narishige's three-dimensional fine micromanipulator has been miniaturized to the ultimate degree; it is the smallest such manipulator in the world, and can be installed just about anywhere. This model is a 4mm bar-mount type. Magnetic stand is sold separately.
Specification
Movement Range
Fine
X/Y/Z Each 10mm Full rotation of knob 400µm
Dimensions/Weight
W30 × D26 × H45mm, 27g
* A magnetic stand (USM-10 ) is optionally available. * To mount onto USM-10 , an X-Block (UX-4-10 ) is also required separately.
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Narishige's YOU-1 micromanipulator set combines a three-dimensional coarse manipulator with a single axis of fine movement suitable for many different applications. The angle and position of the fine movement unit controls the pipette holder independently of the 3-axis course movement. The pipette holder and magnetic stand come with this unit to make a complete set.
Specifications
Coarse Movement
X20mm, Y20mm, Z20mm
Fine Movement
X20mm, 250 microns per knob rotation
Dimensions
W200 × D230 × 250mm
Weight
1.75kg
†
These are our list prices. If you are paying with an Institutional
Purchase Order or by check, you qualify for a 7.5% discount. Click
here
to change your payment method and see the lower prices.
Specification
